Cadis

The Sparkling One

CADIS is a powerful, modern roll over wash unit of the next generation with a wide range of equipment options and two design lines. This model was specially developed for particular requirements of gas stations, wash centres and the basic equipment version for small maintenance operations. An essential feature is that the CADIS meets the new Christ standard (low emission, high performance) and convinces with very small outer dimensions and maximum wash width / height. The variable drying concept and a modular system enable the machine to be precisely adapted to the requirements of the location. Low investment costs, consumption and maintenance costs guarantee maximum revenue for the operator.


Vitesse programme sequence:

active foam, lateral high-pressure and brush wash in only one portal pass
new wash experience
20 % more turnover / revenue

Highlights:

SILENT-drying system
15% more drying performance
optimized blower body
less flow losses
horizontal high-pressure contour following
vitesse programme sequences
XL-wheel wash device
enlarged brush diameter
VISUS display | traffic light function | wash programme steps
compact outer dimensions
OPTIFLEX-inclined position of the lateral brushes


Design line

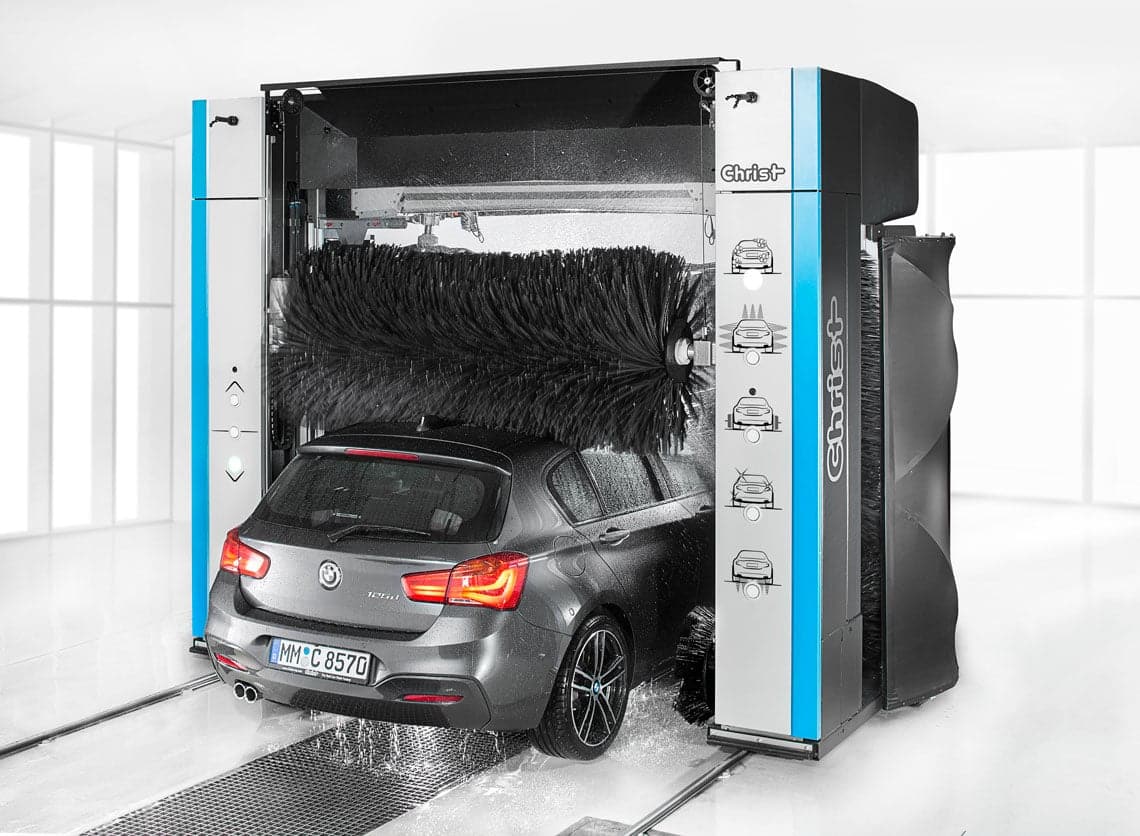

Design line STRIPE:

attractive design even in the basic version
individual choice of the STRIPES colour according to the Christ colour palette

optional:

positioning light left and/or right (arrow forwards, stop, arrow backwards)
pictogram display with 5, 6 or 8 fields
splash protection for horizontal and lateral brushes



Design line BLADE:

PREMIUM design line
individual choice of the BLADES colour according to the Christ colour palette



optional:

splash protection for horizontal and lateral brushes
coloured VISUS display for an attractive customer communication
traffic light function: (arrow forwards, stop, arrow backwards)
wash programme steps are displayed
indicates system failure
displays max. vehicle height / width


Technical Future

Trimming for the wash highlights:

enlarged diameter of side and horizontal brush
optimized immersion depth for better wash result
increased velocity of circulation
faster lifting drive of horizontal brush
1/3 greater density of trimming
higher wash performance

Specially co-ordinated wash materials:

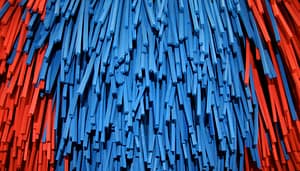

POWERBRUSH+| SENSOFIL+| MICROMIX+


Power from All Sides

High-pressure pre-wash

Wheel high-pressure with two or four rotating nozzles
Lateral high-pressure with four or six rigid nozzles



Optionally selectable:

contour following horizontal high-pressure with eight nozzles (additional portal pass)

15% More Power

Flow-optimized drying system

SILENT-drying system
Four-motor blower system
Widened XL horizontal blower (+150 mm) with 2 x 3 kW
Specially designed for light commercial vehicles and SUVs
100 mm deeper lowering of the horizontal blower
Lateral blower 2 x 4 kW / drying height 1,750 mm
Anodised horizontal / lateral blower

Optionally selectable:

Fly-In drying
pneumatic swivelling of 30° in the rear area


Better Wash Result

Our recommended options

Season chemistry

Optimal dissolving of insects before main wash

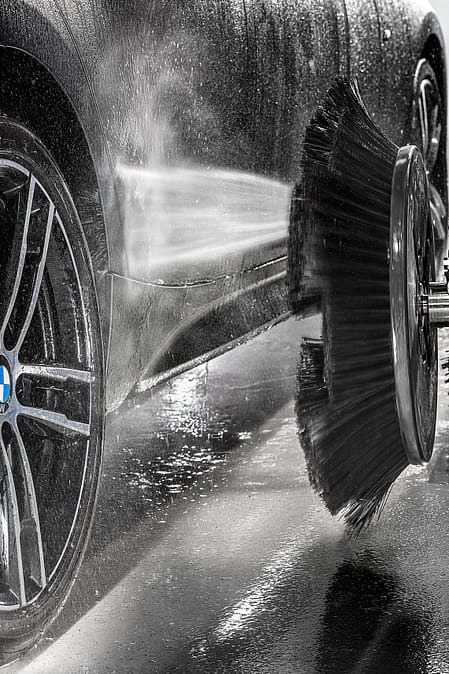

HP wheel, sill wash device

Main soiling is removed before mechanical vehicle wash

Spray system rim-chemistry

Brake dust is dissolved in a controlled manner and guarantees an optimum rim result

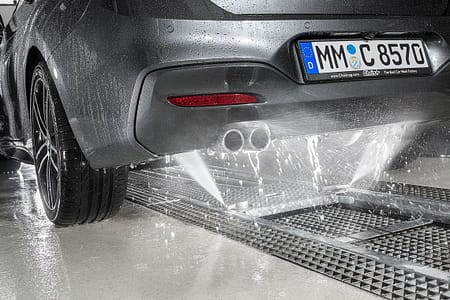

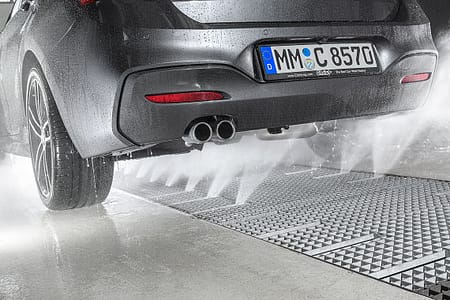

Underbody wash device, swivelling

Swivelling underbody wash device

Optional:

extendable via segments

Mobile underbody wash device

With length measurement and lower water consumption

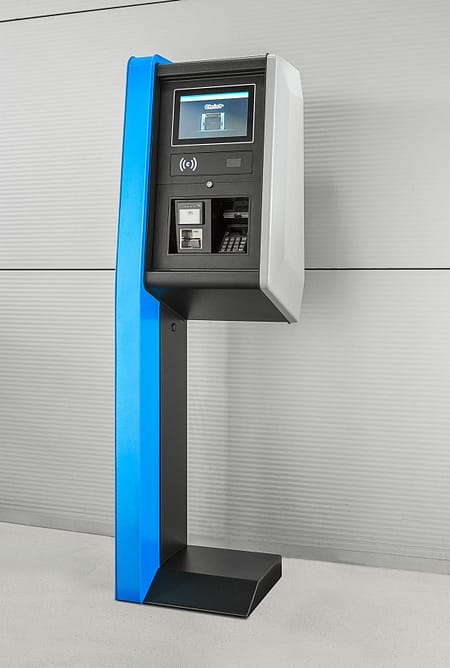

Operation Terminal

Touch Pos & Touch Start

TOUCH POS

modern user interface
touch user interface 10.1 inch

Self-service variants:

transponder card reader
PIN Code system
barcode scanner
integrated bank card terminal

TOUCH START

modern user interface
touch user interface 10.1 inch
wall installation

Self-service variants:

PIN Code system
