Capelec – CAP3600

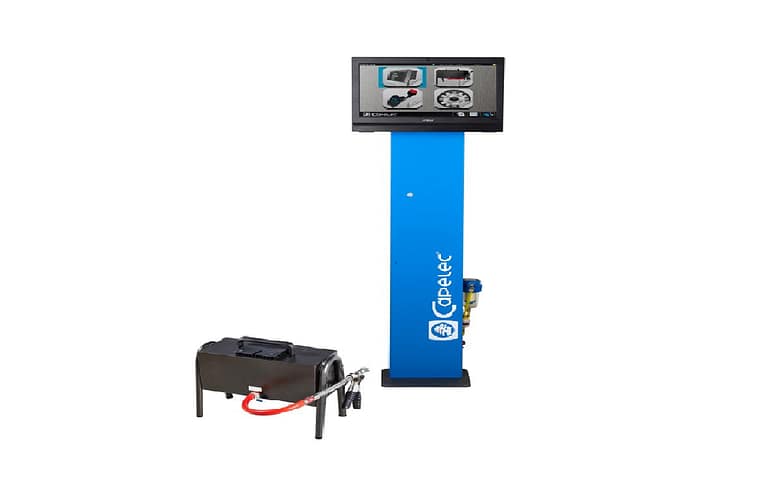

CAP3600 Emission analyzer

Touch screen CAP3600 is wireless, accurate and affordable exhaust gas analyzer (smokemeter), for Diesel, Gazoline, LPG engines (automotive, trucks, camping car, tractor, industrial trucks).



  • PC box | touchscreen (23-27”)
  • QWERTY keyboard
  • Software : WN OS & WIN3600
  • Design totem
  • Wireless features
  • Safe data tranmission : OTC LAN (otclan) / GIEGLAN
  • Remote controle
  • Distance maintenance
  • Made in France

Gas analyzer | Gazoline

  • Complying with standard : OIML R99 0 Class, ISO 3930 and BAR97
  • Dual mode : diagnostic and vehicle inspection
  • Measuring the concentrations of : Hydrocarbons (HC), Carbon monoxide (CO), and  Carbon dioxide (CO²), Oxygen (O²)
  • Treatment of O2 Sensor input
  • Treatment of Nox Sensor input
  • Warm-up time :< 9 minutes at 0°C (1 minute minimum ) for full performance
  • Response time : < 5 seconds for Co, Co2, HC
  • Operating temperature : -10°C to 55 °C
  • Storage temperature : -20°C to 70°C
  • Humidity : 0 to 95 % relative
  • Ambient pressure : 750 mBar to 1150 mBar
  • HC | Normal resolution : 0 to 2000ppm | High resolution: Propane 2001 to 20000ppm Propane
  • CO 0 to 5%
  • CO2 0 to 20%
  • O2 0 to 25%
  • Nox 0 to 5000 ppm
  • Engine speed 0 to 9999 rpm
  • Oil temperature 0 to 150°C
  • Corrected CO 0 to 10%
  • Air/fuel coefficient (Lambda) 0 to 9,99

Smokemeter | Diesel

  • Portable cell
  • Wireless connexion (Bluetooth module CAP1221)
  • Opacity analysis function, display of the opacity curve
  • Auto adjustment to zero value
  • No calibration
  • Low most accumulation
  • Robust and light

Opacimax | Diesel

  • Mobile cell
  • Wireless connexion (Bluetooth module CAP1221)
  • Opacity analysis function, display of the opacity curve
  • Auto adjustment to zero value
  • Auto calibration
  • Accurate
  • Low most accumulation
  • Robust

Opacinox | Diesel

  • Mobile cell
  • Wireless connexion (Bluetooth module CAP1221)
  • NOx and opacity analysis function, display of the opacity curve
  • Auto adjustment to zero value
  • Auto calibration
  • Accurate
  • Low most accumulation
  • Robust

Manufacturer’s website : Capelec

Product website : Capelec-CAP3600

Contact us for more informations !
