Consul – Z-Line 245 HD Flex

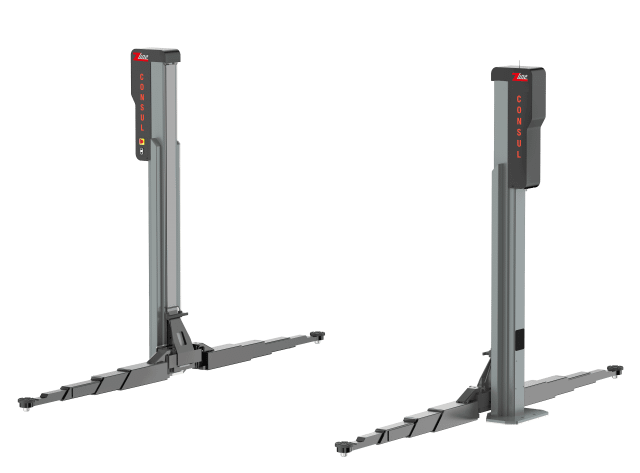

Z-Line 2 post lift type Z245 HD Flex

Product description :

Flexibly mountable 2-post hydraulic lift with proven technology based on the mechanical “Edition” especially suited for transporters with long wheel base (4.025 mm).

Equipment :

No hydraulic hoses, no steel cables, no fixed connection
Special rolled section column
Lifting carriage including 6 maintenance free roller bearings
High pressure hydraulic drive with 2 high pressure cylinders
Softline push button control
Lockable main switch (as required by CE)
High handling safety due to digital microcomputer control
Automatic arm locking mechanism with manual release function
Quick connectors for air-supply on both sides
Cushioning door stop
Complete covering of post interior
Acoustic foot protection
Motors with thermal protection
Optional: 2nd control unit
Protection class IP54, GS-approved, DIN EN 1493,CE-approved



Manufacturer’s website : Consul

Product website : Consul-Z-Line

Product PDF :Consul-Z-Line_hd-flex-45_0
