Consul – Z-Line 4152 RF

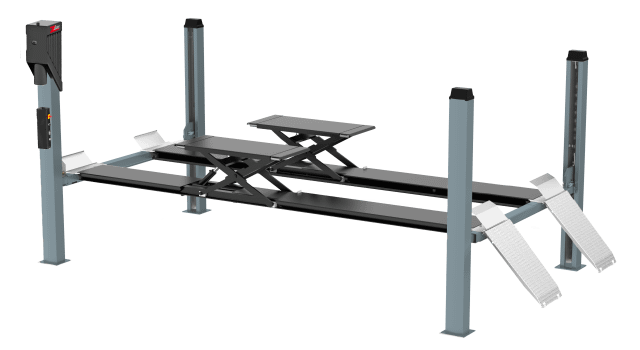

Z-Line 4 post lift type Z4152 RF

Product Description:

The allround model: 4 post lift with extra long and broad adjustable platforms and double-sided extendable, integrated auxiliary lift (3.500 kg). Ideal for the maintenance of large vehicles with long wheel base.

Equipment

Reliable electro hydraulic drive with low noise hydraulic under oil power unit
Power transmission through traction cylinder
Variable platform distance
Serially rail for jacking beam
Integrated auxiliary lift (Master/Slave hydraulic system), extendable both ways,
incl. 4 elastomer adapters 250 x 150 x 20 mm (60 mm for RF-AV)
Locking device for wheel alignment every 100 mm via pneumatic locking system (8 bar)
Serially long drive-on ramps (1.000 mm) for sporty vehicles
Incl. 2 air connections and 2 air wrench holders
Safety signal tone at lowering in foot area
Lifting and lowering via ergonomic push button control
Operation in drive-on direction front left
Optional with post clearance 3.000 mm
Protection class IP54, GS-approved, DIN EN 1493, CE-approved

Indice de protection IP54, agréé GS, DIN EN 1493, agréé CE



Manufacturer’s website : Consul

Product website : Consul-Z-Line-4-post-lift

Product PDF :Consul – Z-Line 4144
