Consul – Z-Line 4170 RF

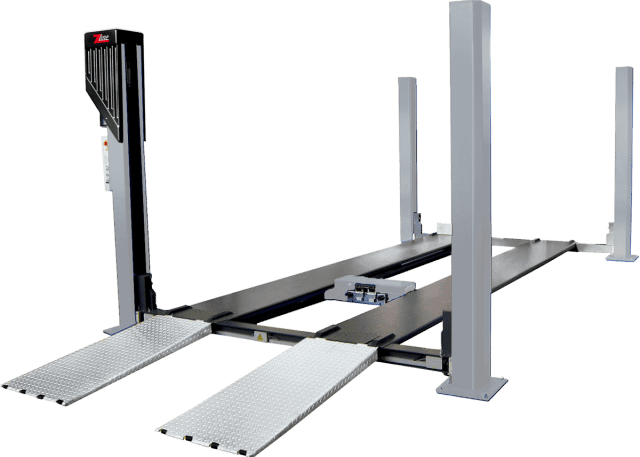

Z-Line 4 post lift type Z4170 RF

Product description :

The full package: 4 post lift with extra long and broad adjustable platforms and auxiliary lift (3.500 kg). Ideal for maintenance of commercial vehicles.

Equipment

Reliable electro hydraulic drive with low noise hydraulic under oil power unit
Power transmission through traction cylinder
Variable platform distance – optionally roller guided
Serially rail for jacking beam
Locking device for wheel alignment every 100 mm via pneumatic locking system (8 bar)
Serially long drive-on ramps (1.000 mm) for sporty vehicles
Incl. 2 air connections and 2 air wrench holders
Safety signal tone at lowering in foot area
Integrated auxiliary lift (Master/Slave hydraulic system), extendable both ways, incl. 4 elastomer adapters 250 x 150 x 20 mm
Lifting and lowering via ergonomic push button control
Operation in drive-on direction back left
Protection class IP54, GS-approved, DIN EN 1493, CE-approved



Manufacturer’s website : Consul

Product website: Consul-Z-Line-4-post-lift

Product PDF :Consul-Z-Line_41
