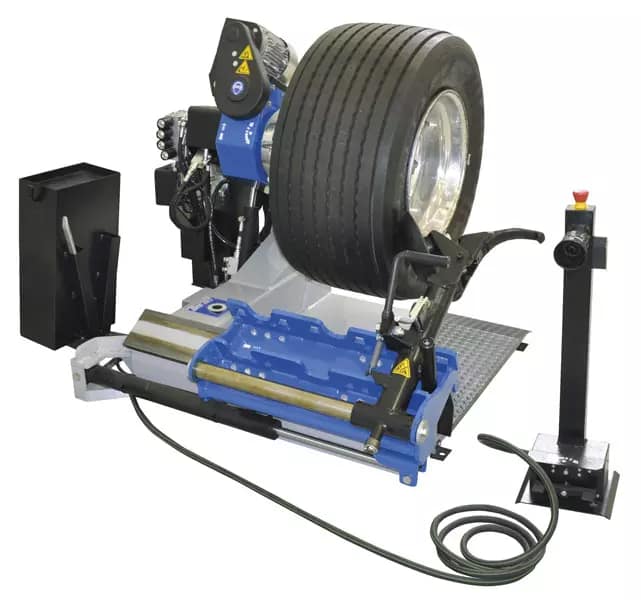

Giuliano – S557

Tyre changer suitable for truck and bus fleets with 13″-27″ rim (max. diameter 1600 mm./63″, max. wheel width 780mm./30″). Equipped with two-speed hydraulic clamping chuck and movable control unit, for safe and convenient operation.
Suggested for professional truck tyre service and high volume shops.


Functions

Hydraulic movement of clamping chuck holding arm (up-down);
Hydraulic travel movement of operating arm carriage (left-right);
Operating arm manual tilting and travelling on carriage;
Double tool (disk + finger) manual rotation;
Wheel clamping by fully hydraulic operated jaws;
Operating arm and clamping chuck arm facing each other;
All motions controlled by console and pedal box;
Emergency safety button on control consolle, for stopping all functions;
Suitable for control console installation on pivoting arm (optional);
Rim center hole clamping range ø 80 – 700 mm;
Clamping chuck minimum height from ground 330 mm (center).
