The JLF 4000, together with the wide range of John Bean 3D wheel aligners, offers the perfect combination for wheel alignment of all vehicles

---

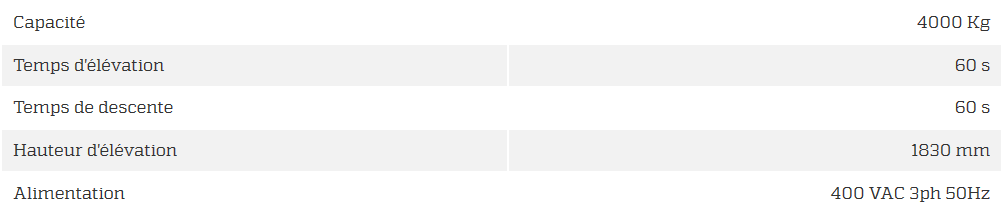

Specifications

The integrated rear sliding plates guarantee that a four wheel alignment can be performed on all vehicles with wheel bases from 1.930 mm up to 4.150 mm. Each ones is equipped with 3 pieces of multiple plastic rollers
Control unit: with emergency switch and comfort lowering which allows the automatic release of the carriage from the safety lock when lowering the lift
The sliding jack increases the lift’s versatility (optional)
The turnplates are integrated in the runways and can be placed in 3 different positions to support a wide range of wheel bases (optional)
Safety ladder: allows to level the lift and to set the runways in the locked position for wheel alignment
Comfort lowering: the lift will automatically go up a little bit to release the carriage from the safety lock and then automatically lower the vehicle
The ramps are designed to allow cars with lowered chassis to drive on the lift without any damage

---

Ramps

With the length of 1.060 mm a drive on angle of 10°is possible keeping the overall length of the complete lift below 6.400 mm

---

Comfort lowering

Lowering the vehicle is done by simply pushing the lowering button for themost easiest and convenient operation

---

Cable system

Rugged brass pulleys ensure long life of the lift

---

Control unit

Clear and easy to understand, with emergency switch and comfort lowering

---

Turntables (optional)

Turntables can be placed in 3 different positions to support a wide range of wheel bases

---

Jack (optional)

3000 kg lifting capacity

---

---
