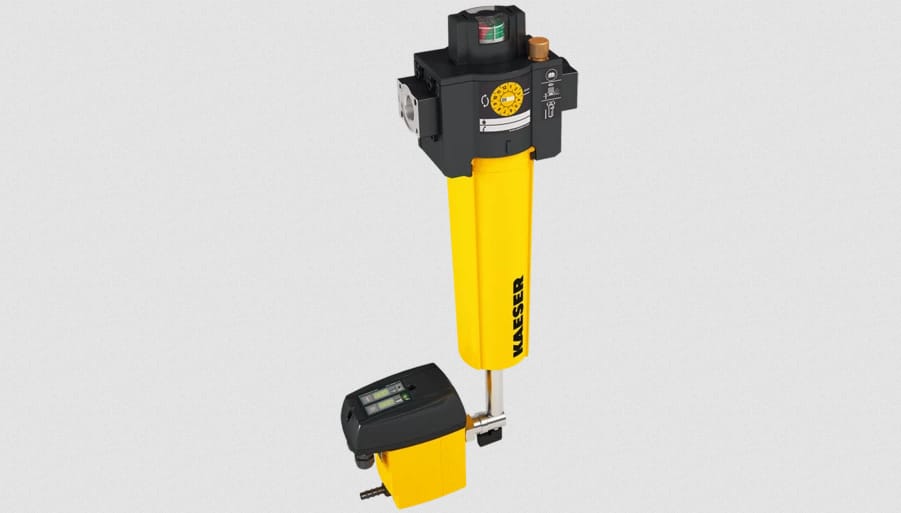

KAESER – FILTER series, 0.6 – 32.0 m³/min


Cost-effective solutions for optimal compressed air quality

KAESER FILTER products are the key components for producing compressed air to all purity classes as per ISO 8573-1. All with exceptionally low differential pressure. Moreover, their service-friendly design not only allows simple, error-free opening and closing of the filter housing, but also enables quick and clean element changes.

Flow rate: 0.60 to 32.0 m³/min
Max. working pressure 16 bar
Max. operating temperature 66 °C


Your advantages

  • Standard-compliant purity:
    The KAESER FILTER range uses modern deep-pleated filter media to remove particles and aerosols. A highly effective carbon fibre mat traps oil vapours. The outstanding performance data of KAESER FILTERS were calculated according to ISO 12500 and validated by Lloyd’s Register, the independent certification organisation.
  • Low pressure loss – high savings:
    KAESER FILTER products feature generously dimensioned housings and filter surfaces, innovative flow dynamics and high-performance filter media. They feature up to 50% lower pressure loss than other available filters – a value which remains virtually constant over the entire service life of the filter element. This means lower costs and CO2 emissions as well as reduced load on upstream compressors.
  • Service-friendly design – straightforward handling
    KAESER FILTER products feature a corrosion-resistant aluminium housing and a stable filter element. The practical bayonet lock ensures automatic positioning of the housing and element seals, which prevents the filter housing from being sealed unless a filter element has been inserted. A locking screw prevents unintentional opening of the housing when under pressure and also provides housing venting.

The perfect partner: the AQUAMAT oil/water separator

Our tip: Take advantage of cost-effective, legally-compliant treatment of condensate before drainage into the regular wastewater system with AQUAMAT oil/water separators.


Manufacturer’s website : Kaeser

Product PDF : Kaeser-Filtre-0,6-32
