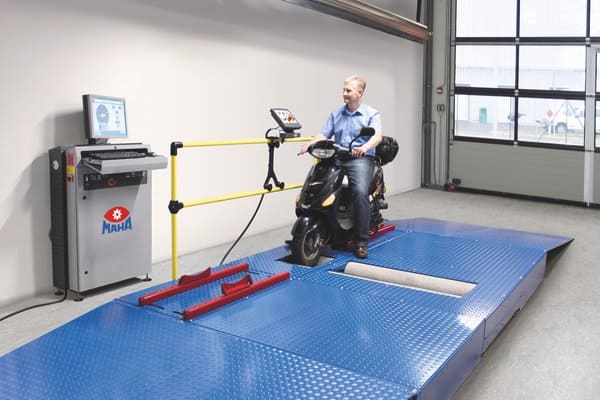

Maha – MBT 1000 Eurosystem

MBT-SERIES | Roller-Brake-Tester up to 1000 kg wheel load

Descriptions:

Short roller axle distance means it is particularly suitable for testing motorcycles.

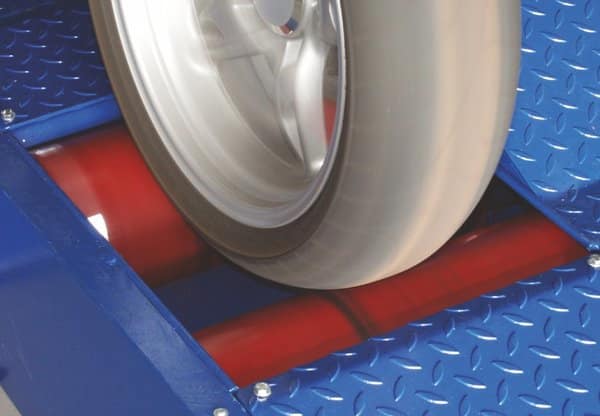

Supplied as standard with tyre-preserving MAHA plastic coating on test rollers, specifically coordinated to the tyres
MAHA modular design with optional motorcycle clamping and holding device for the rear and front wheels with removable clamping jaws for simple testing that is kind to the rims.
MAHA modular design with optional extension roller set allows for testing of two and three-track vehicles (trike, quad, etc.)
Supplied as standard with tyre-preserving MAHA plastic coating on test rollers, specifically coordinated to the soft two and three-wheel-specific tyres
Operating panel with the following comprehensive functions:

Start, stop, emergency stop
Operation of the clamping and holding device,
Operation of the lifting bar


Comprehensive package of functions for professional testing, such as:

Automatic start-up monitoring supplied as standard to avoid tyre damage
Automatic slip cut-off with pointer stop
Automatic cut-off after exiting the tester
Manual start-up control for safe handling
Lifting bar with roller brake makes it easier to drive off with the driven wheel

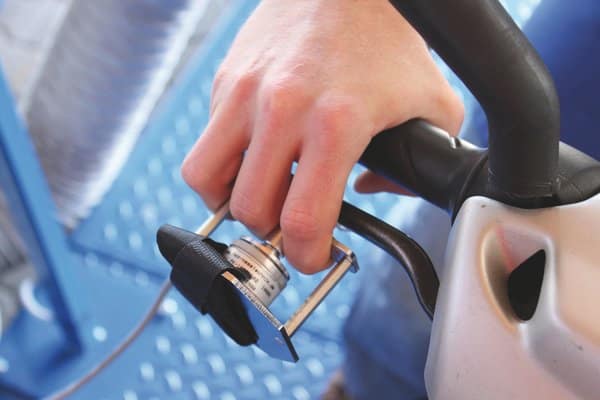

Can be extended with foot and hand force sensor as an option for differentiated analysis of the motorcycle braking system
Round instrument display for the braking force
Continuous and graphic display and recording of all the measured values using time.


Robust and long-lasting design due to:

Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
Roller surface welded
Optional, free plastic coating on the test rollers
32-bit microprocessor electronics for process control and monitoring of all the safety functions
Lockable main switch
RS 232 interface connection
Splash-proof motors work reliably, even under high-stress environmental influences
Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
Varnished with high-quality powder coating, gentian blue RAL 5010


MCD 2000 communication desk:

Robust and multifunctional metal casing
Integrated switch cabinet for housing electronic components
Lockable drawer for keypad and PC mouse, plus storage compartment for small items of equipment
VESA standard bracket for holding the all-in-one PC or PC monitor
Can be extended with optional PC storage compartment or side shelves
Varnished with high-quality powder coating:window grey, RAL 7040 (switch cabinet)
anthracite grey, RAL 7016 (side faces)
Dimensions of communication desk (H x W x D) approx. 1230 x 860 x 350 mm
with printer compartment option (H x W x D) approx. 1560 x 860 x 420 mm


Standard Delivery:

MCD 2000 communication desk with integrated switch cabinet
MBT 1000 RS 1 roller set with preparation for weighing equipment




Manufacturer’s website : Maha

Product website : Maha-MBT1000

Product PDF : Maha-MBT1000
