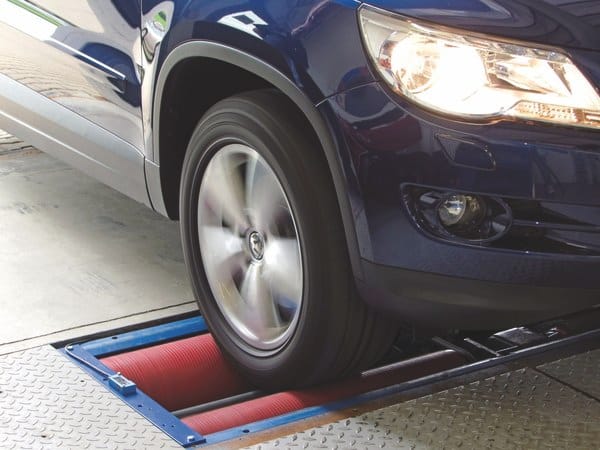

Maha – MBT 2100

MBT-SERIES | Roller-Brake-Tester up to 3000 kg axle load


Descriptions:

Easy and efficient installation thanks to Plug and Play Preparation with 12 m cable harness including plug
Control integrated in roller set makes a separate switch cabinet superfluous (depending on equipment)

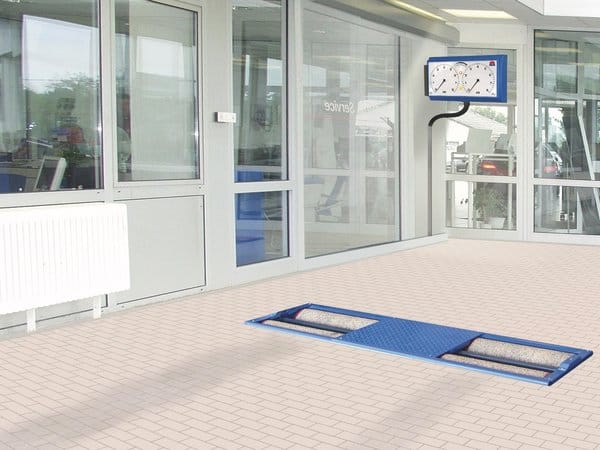

Flat and lightweight display for various installation options
When used with the optional lifting device, perfectly suitable for checking multi-axle car trailers.


Comprehensive package of functions for professional testing, such as:

Delayed automatic switch-on after entering the tester
Automatic start-up monitoring supplied as standard to avoid tyre damage
Automatic slip cut-off with pointer stop and automatic restart already included as standard
Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
Automatic cut-off after exiting the tester


Robust and long-lasting design due to:

Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
Roller surface welded
Optional, free plastic coating on the test rollers
32-bit microprocessor electronics for process control and monitoring of all the safety functions
RS 232 interface connection
Splash-proof motors work reliably, even under high-stress environmental influences
Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
Internationally recognised TÜV certificate as per issue 9/2011 of the Verkehrsblatt [German Transport Gazette]
RS 2 roller set design
Self-supporting closed roller set
Hot-dip galvanized design


Standard Delivery:

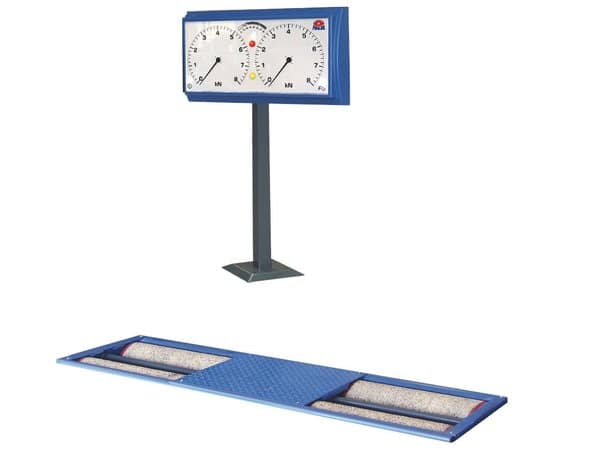

Analogue display with two pointer indicators for brake force and optical LED differential display
MBT 2000 RS 2 roller set with integrated switch cabinet and preparation for weighing equipment




Manufacturer’s website : Maha

Product website : Maha-MBT2100

Product PDF : TD_MAHA_MBT_2100_VP210084_FR
