Maha – MBT 2250 Eurosystem

MBT-SERIES | Roller-Brake-Tester up to 3500 kg axle load

Descriptions:

Especially suitable for acceptance and diagnostic lanes
Basic module for setting up a test lane thanks to optional possibility of connecting additional EURO floor units
Test lane-enabled thanks to possibility of connecting MSD 3000 / MINC / TPS EURO floor units
For cars and vans weighing up to 3500 kg and with a track width of 2200 mm, plus those weighing up to 5000 kg and with a track width of 2800 mm as an option
When used with the optional lifting device, perfectly suitable for checking multi-axle car trailers.


Comprehensive package of functions for professional testing, such as:

Delayed automatic switch-on after entering the tester
Automatic start-up monitoring supplied as standard to avoid tyre damage
Automatic slip cut-off with pointer stop and automatic restart already included as standard
Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
Automatic cut-off after exiting the tester
Single-wheel switching for differentiated consideration of each wheel


Intuitive-to-use EUROSYSTEM software for the highest expert standards with:

Round instrument display for the braking forces Additional displays for difference, decelerations, and optional scale and force sensors.
Integrated user guidance with easy-to-understand user instructions
Continuous and graphic real-time display of all the measured values using the reference values time and force.
EUROSYSTEM supplied as standard with integrated SQL Server Express database
Multi-user capability option for productive allocation of the individual work packages to several workstations.
Easy to connect additional devices such as MLT 3000 to EUROSYSTEM
Configurable test report with all the measurement and evaluation results of the tests performed on a single print-out


Robust and long-lasting design due to:

Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
Roller surface welded
Optional, free plastic coating on the test rollers
32-bit microprocessor electronics for process control and monitoring of all the safety functions
Lockable main switch
RS 232 interface connection
Splash-proof motors work reliably, even under high-stress environmental influences
Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
Internationally recognised TÜV certificate as per issue 9/2011 of the Verkehrsblatt [German Transport Gazette]

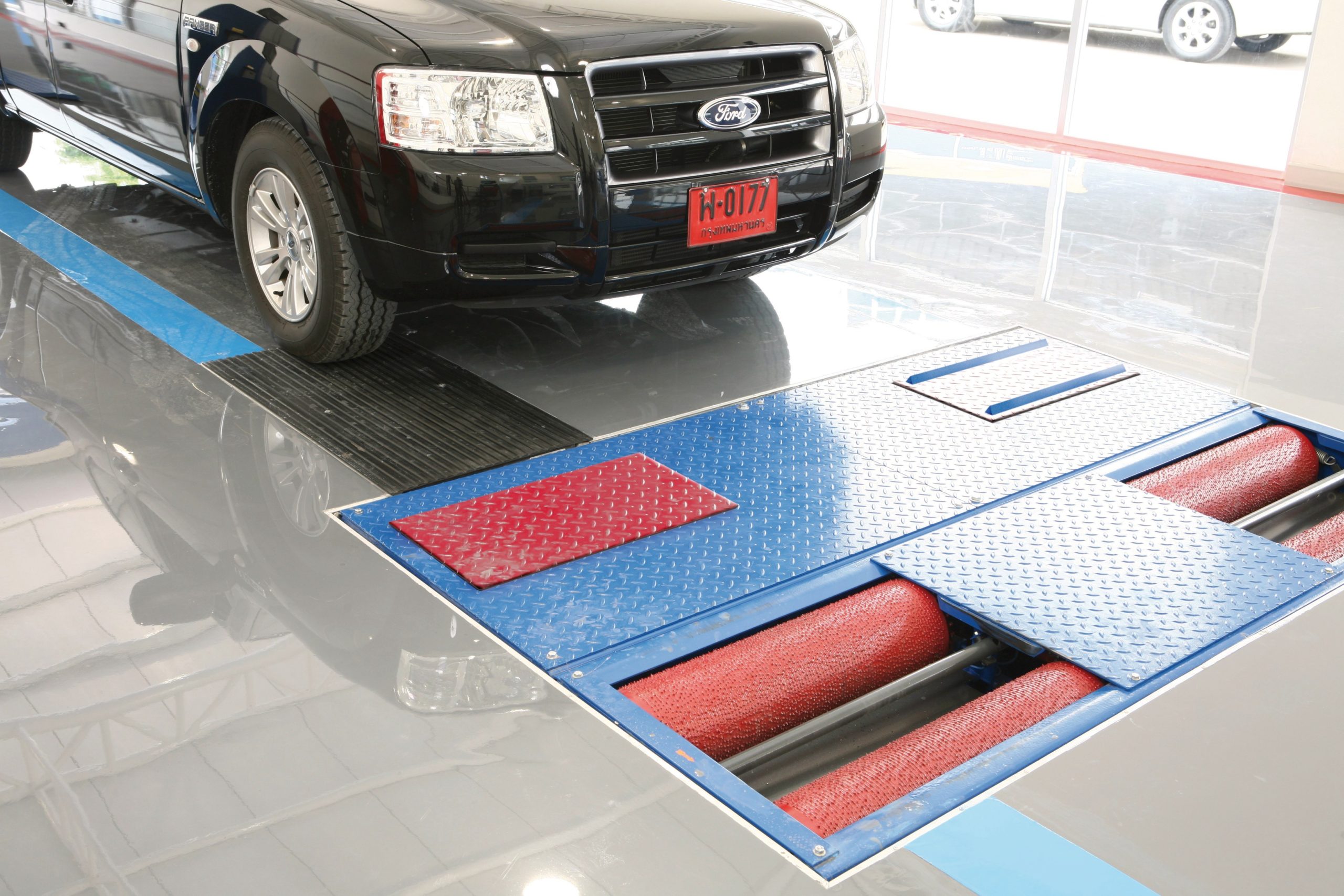

RS 2 roller set design
Self-supporting closed roller set
Hot-dip galvanized design


MCD 2000 communication desk:

Robust and multifunctional metal casing
Integrated switch cabinet for housing electronic components
Lockable drawer for keypad and PC mouse, plus storage compartment for small items of equipment
VESA standard bracket for holding the all-in-one PC or PC monitor
Can be extended with optional PC storage compartment or side shelves
Varnished with high-quality powder coating:window grey, RAL 7040 (switch cabinet)
anthracite grey, RAL 7016 (side faces)
Dimensions of communication desk (H x W x D) approx. 1230 x 860 x 350 mm
with printer compartment option (H x W x D) approx. 1560 x 860 x 420 mm


Standard Delivery:

MCD 2000 communication desk with integrated switch cabinet
MBT 2000 RS 2 roller set with preparation for weighing equipment




Manufacturer’s website : Maha

Product website : Maha-MBT2250

Product PDF : TD_MAHA_MBT_2250_EUROSYSTEM_VP210111_FR
