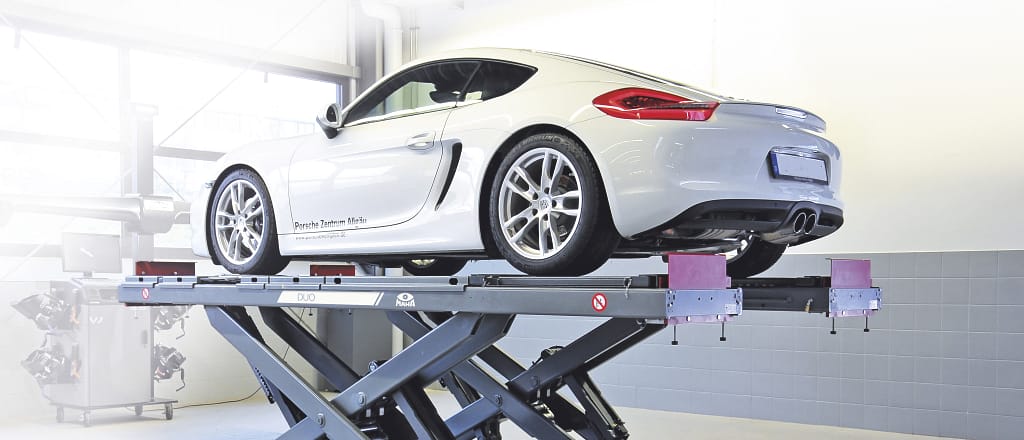

Maha – Scissor lift DUO CM 5.0 A

DUO | Scissors Lift with 5000 kg Load Capacity


Description:

Scissor lift for on-ground installation
Very robust and well-established design with a high vehicle throughput and optimum service life in mind
High lateral stability and bending strength, so also suited to precise wheel alignment
Runways equipped with pre-integrated guide rail for axle lift
Latches and cylinder racks as extra safety feature
Cables and hydraulic hoses installed safely within scissor pipes
An elevated lifting height in excess of 2.1 m makes repair works and access easier
EMERGENCY OFF function in the case of power failure
Additional anti-corrosion treatment of lock seams, cavity sealing
Varnished with high-quality powder coating: gentian blue, RAL 5010
Automatic synchronisation of runways and the optional wheel-free jack
Protected within the lifting cylinders, the maintenance-free integrated displacement measurement encoder (‘linear-absolute measuring system’) eliminates the need for light barriers for synchronisation monitoring and electric switches for lift height detection
High level of safety due to immediate switch-off in case of (one-sided) collision with obstacle at minimum height difference
Crushing and shearing protection due to CE stop
Stops automatically upon rising to desired lifting height with custom programmable breakpoint
Robust membrane keyboard
Double latch option for wheel alignment for additional stability within the scissors arm (not possible in conjunction with wheel-free jack)
DUO-SPEED option for short lifting / lowering times


Standard Delivery:

Scissor lift, type: DUO CM 5.0 A
Operation desk with control and hydraulic unit
Lockable main switch
Cover plates for cables and hydraulic hoses
2 long drive-on ramps, 2 roll bars
2 pneumatic quick-action couplings installed on runway
8 rope loops to be used as a transport aid
Operating manual and test log
EC CE declaration of conformity
Transport packaging


There is a encastred version :
