Maha – SERIE CONNECT – C_MBT C 5.0 W280

Digital roller brake tester for cars and vans up to 5.0 t axle load with
2 x 4 kW drive motors and a max. track width of 2,800 mm.

Particularly suitable as stand-alone tester or as part of car reception and diagnostic test lanes for large and heavy cars and vans, and with increased loads.



PRODUCT DETAILS / SCOPE OF DELIVERY

Description:

Digital roller brake tester for cars and vans
up to 5.0 t axle load with 2 x 4 kW drive motors
and a max. track width of 2,800 mm

Particularly suitable as stand-alone tester
or as part of car reception and diagnostic test lanes
for large and heavy cars and vans,
and with increased loads

Features:

    • Real slip monitoring and automatic start-up delay as standard

    • Tyre-saving thanks to integrated automatic start-up monitoring

    • Automatic slip switch-off with pointer stop and automatic restart

    • Automatic aid for comfortable vehicle exit with driven axles

    • Automatic switch-off after vehicle exit

    • Electronic, temperature compensated (neutral) strain gauge system

    • Internationally recognised TÜV report in accordance with VkBl 9/2011 (Germany)

  • Further product advantages – for details see Sales Handbook:

    • A sturdy and solid design

    • Interface module in the floor assembly

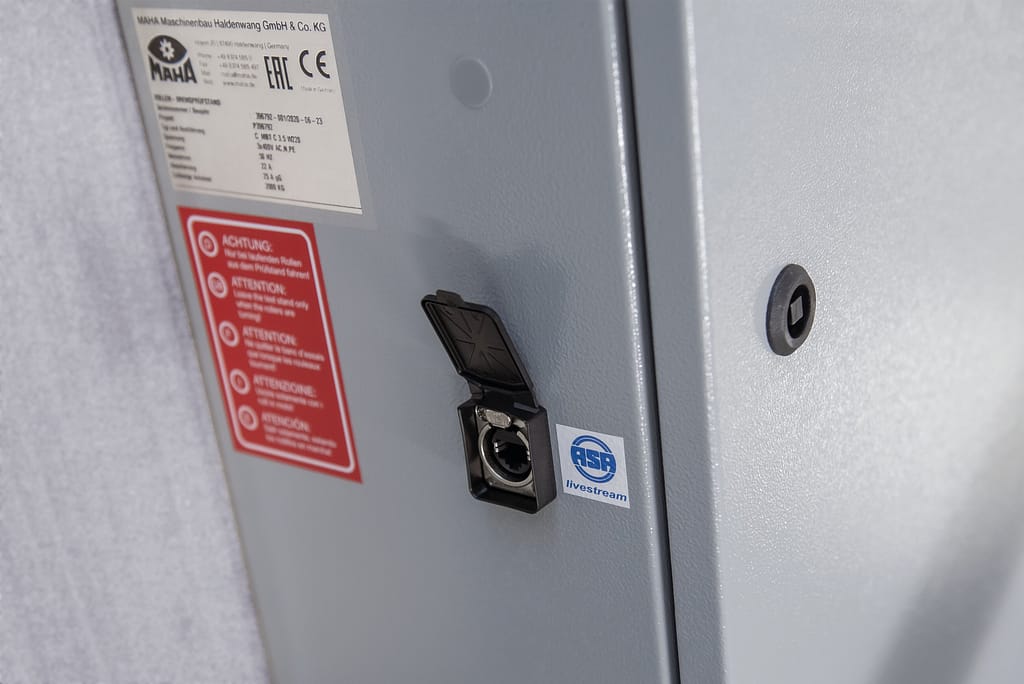

    • Secure and digital data transmission

    • Modular control box set-up

    • Multi-flexible display possibilities

    • Simple start-up

    • Simple maintenance and service

    • Safe operation

    • Optimised calibration and adjustment

    • Integrated and expandable software and/or interfaces

Configuration:

  • Roller set model C W280

  • Self-supporting, encased roller set (Compact)

  • Continuously height-adjustable (245 – 300 mm)

  • High-quality powder coating: anthracite grey, RAL 7016



TECHNICAL DATA

Axle load (traversable) 5000 kg
Min. track 780 mm
Max. track 2800 mm
Drive power 2 x 4 kW
Test speed 5 km/h
Measured value display 0-8 kN
Roller diameter 202 mm
Roller axle distance 400 mm
gG Fuse 25 A
Power supply 3/N/PE 400 V 50 Hz
Dimensions of roller set (L x W x H) 2924 x 680 x 280 mm



Manufacturer’s website: Maha

Product website: Maha-C-MBT C MBT C 5.0 W280

PDF of the product : TD_MAHA_C_MBT C 5.0 W280
