Main wash zone

Contour cylinders (rocker)

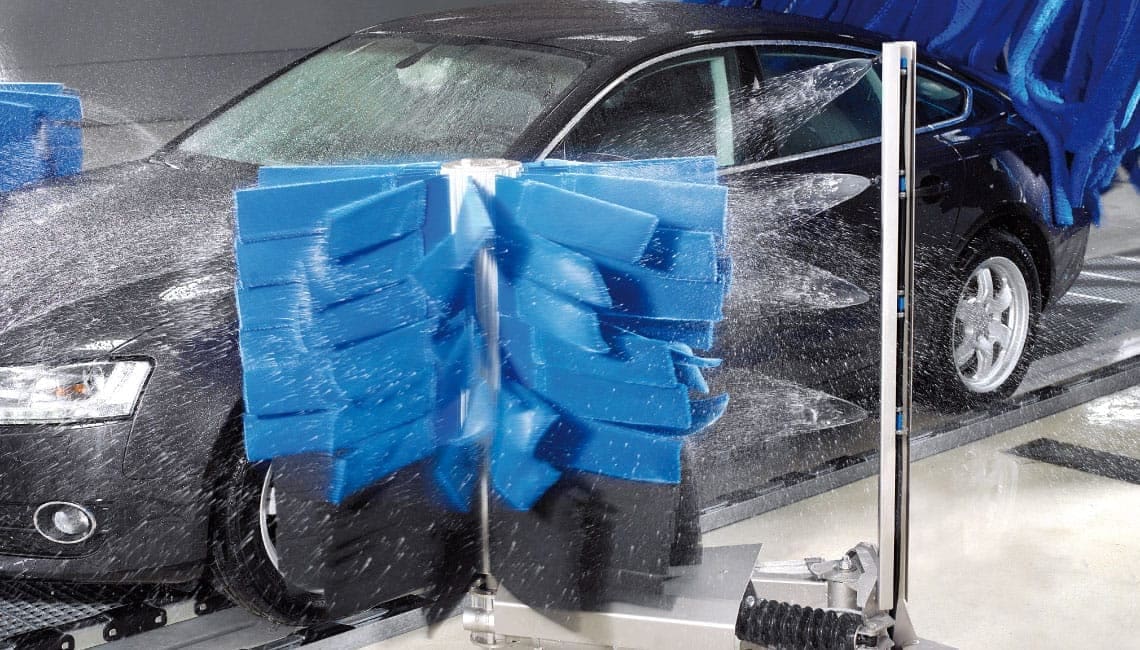

Contour wash unit KONTEX-HYBRID, 2 Cylinders, WH 1.100mm

A substantial component of the wash tunnel. This unit is used for washing the sill and fender surfaces as well as the lower side surfaces. The frame is made from stainless steel. Side wash height:  1.100 mm.

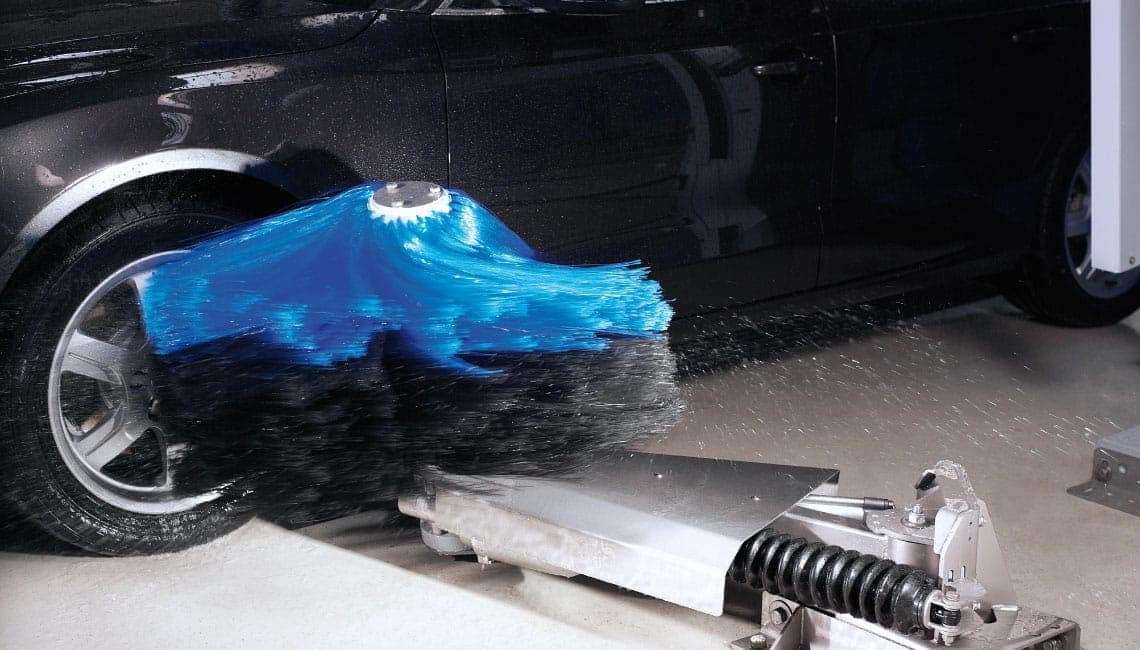

Contour wash unit MINI-KONTEX-HYBRID, 2 Cylinders, WH 500 mm

Special aggregate for the sill area, the lower side surfaces and the rims. Slanted position can be adjusted. Frame made from stainless steel. Side wash height: 500 mm.

Contour wash unit VAN-KONTEX-HYBRID, 2 Cylinders, WH 1.900 mm

Can be used for washing vehicle side surfaces as well as a side polishing aggregate in the polishing zone (profiled cylinder trimming). Frame made from stainless steel. Side wash height: 1.900 mm.






EVOLUTION-Wash portal EVO-1

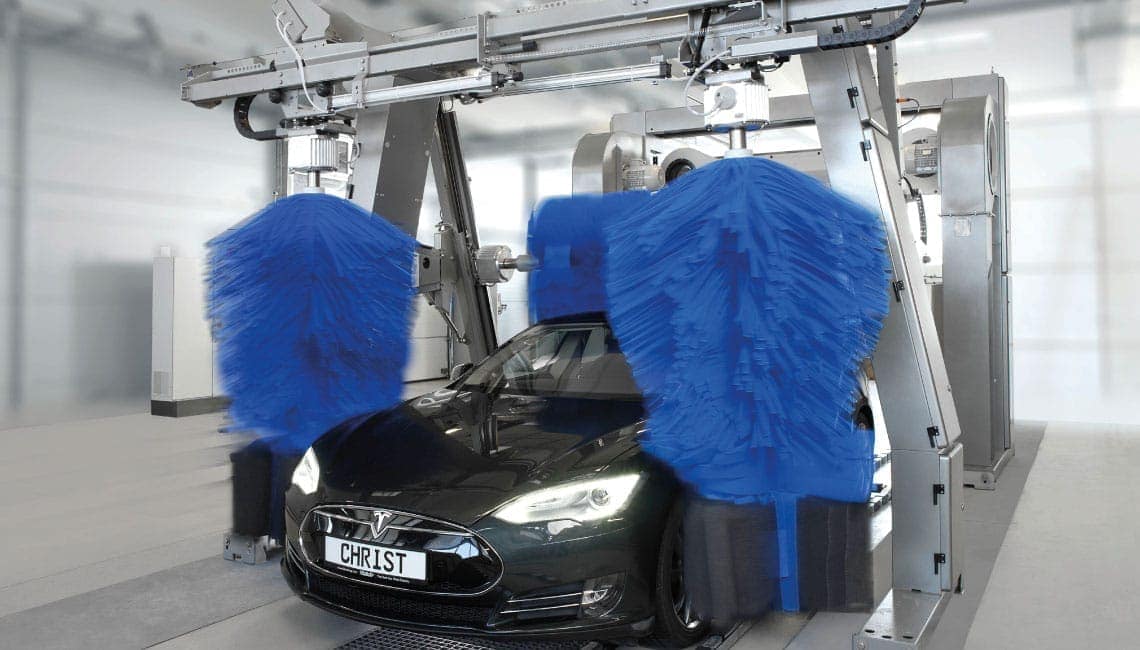

Wash portal EVO-1, 2 cylinders or 3 cylinders

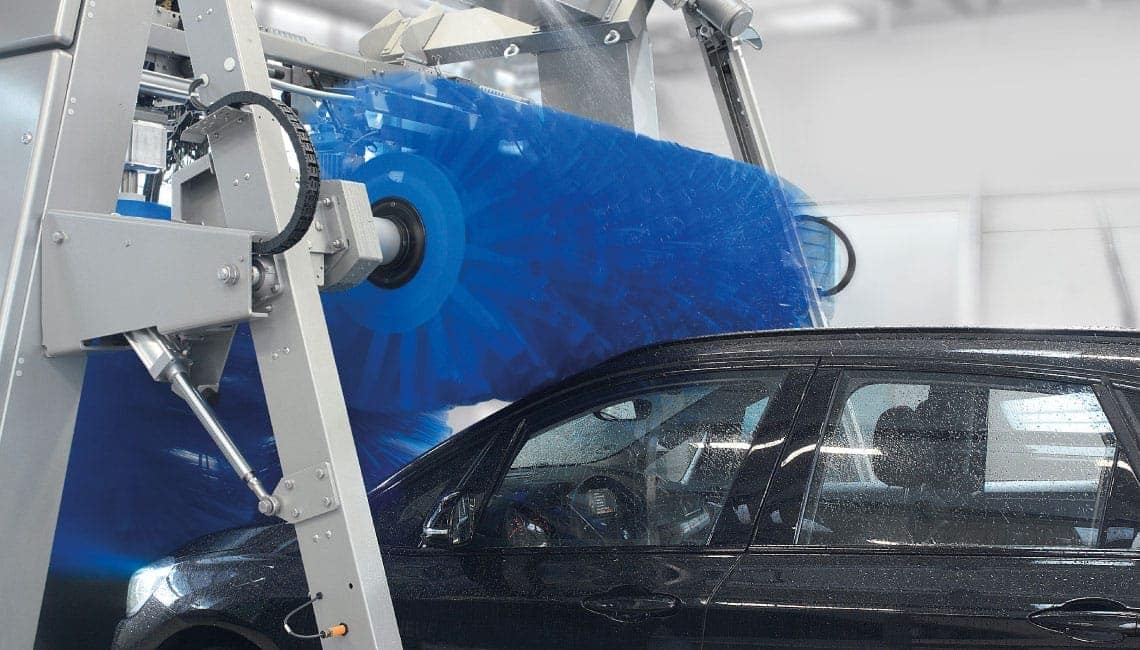

Sturdy frame made from galvanized steel with duplex powder coating and plastic doors. The side cylinders wash the vehicle’s front, side and rear. Cylinder opening controlled by active power measurement on the electric brus





FOLLOW-UP Roof cylinder system

For contour-following washing of the horizotal vehicle surfaces. Moves upwards pursuant to the vehicle’s front and follows the vehicle’s rear (pneumatic angle setting). Electrical cable lifting drive with frequency converter.

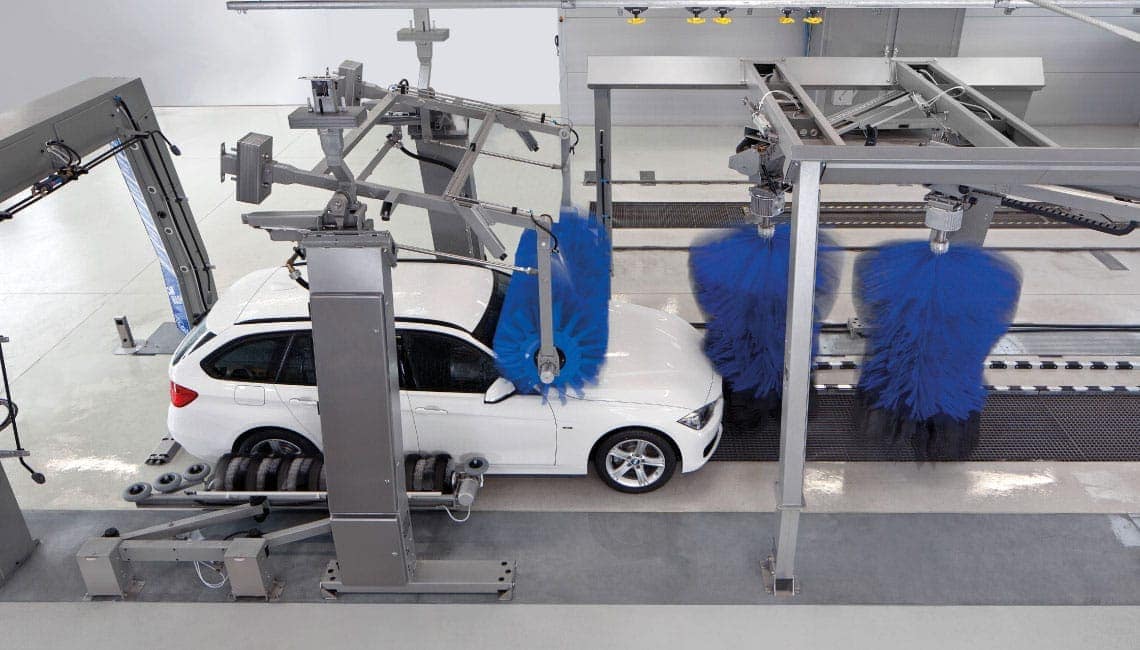

EVOLUTION Wash portal EVO-1 with crossmitter

EVOLUTION Wash portal EVO-1 with crossmitter

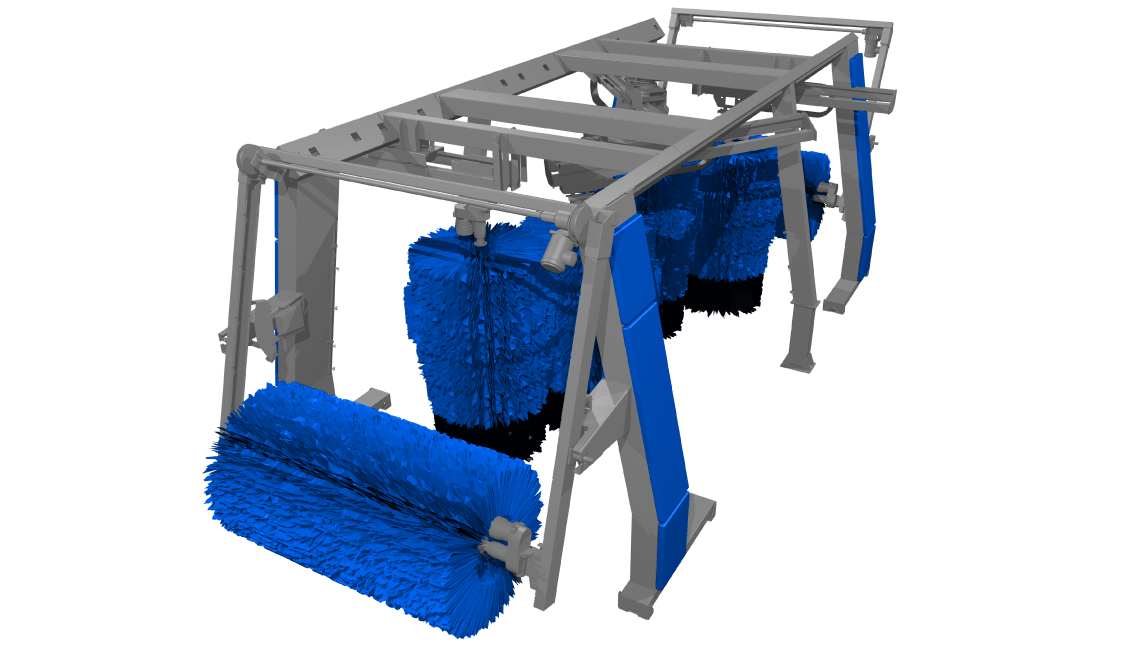

Wash portal Evolution EVO-1, 2 cylinders and 1 crossmitter The 2 front mounted side cylinders wash the vehicle’s front, side andrear. Cylinder opening controlled by active power measurement on the electric brush drive, Brush pressure controlled by a tension spring system. The cylinders can be adjusted off-center to the wash axis (centre cross-over by two cylinder pairs). The electrical crossmitter washes the vehicle’s horizontal surfaces and upper side surfaces This portal can also be installed as a textile dryer following the air dryer.

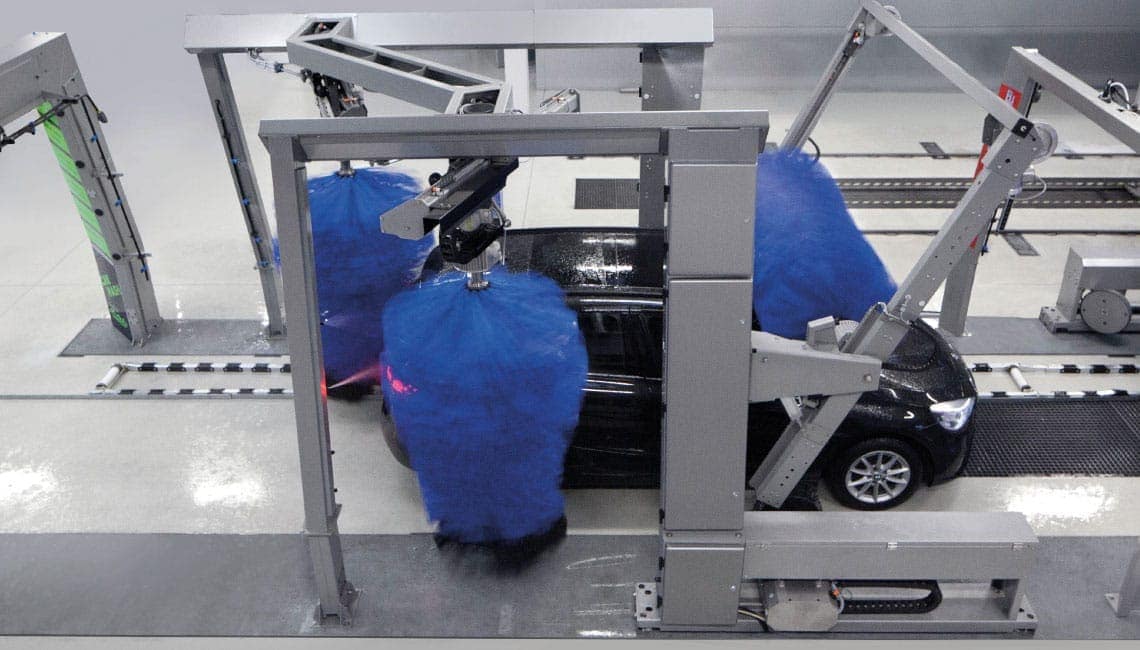

EVOLUTION Wash portal EVO-2

Wash portal Evolution EVO-2, 2 cylinders or 3 cylinders

Two profiled side cylinders allocated parallel to eachother wash the vehicle’s front, side and rear (accompanying on front, following in on rear). Electromotorically controled via xrail direct drive with frequency coverter (FC). During the side wash, the travelling tracks pneumatically pivot from the front wash position to the rear wash position. Following the vehicle wash, the air cylinder brings them back to their starting position. FOLLOW-UP Roof cylinder system: Also compatible with the EVO-2.






Cylinder drive as direct drive

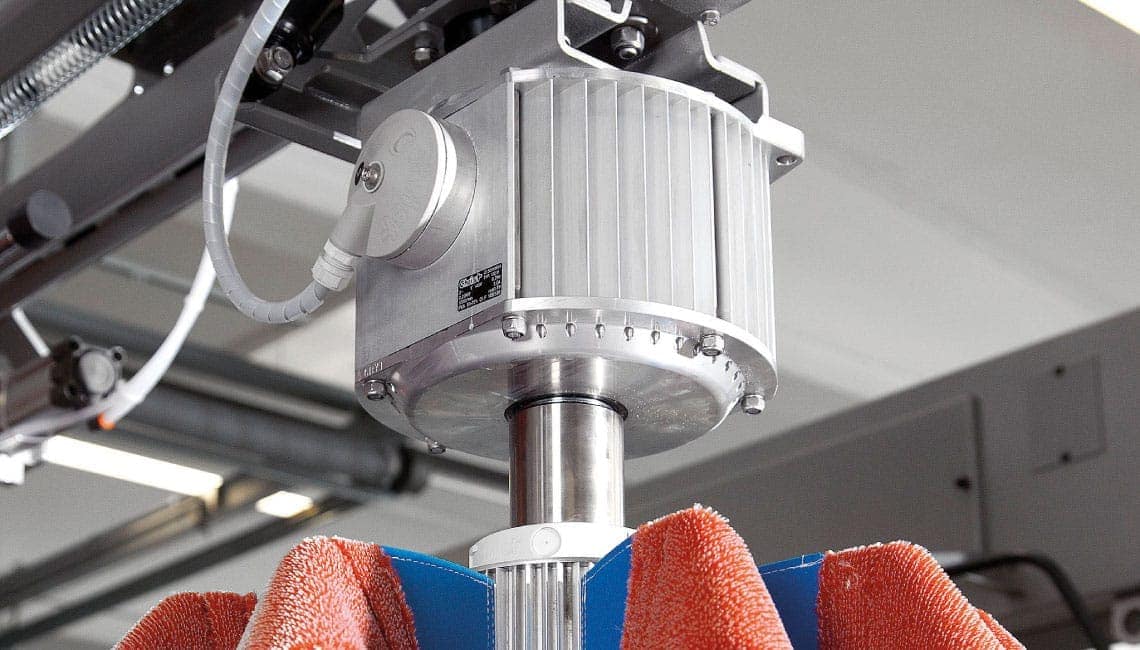

Direct drive for Evolution side cylinders and follow-up roof cylinder.

Only Christ offers the direct drive for the Evolution side cylinders and the follow-up roof cylinder as an alternative option to the standard electro-drive motor. Electricity consumption – depending on the wash material used – is reduced by up to 30% with this revolutionary drive system. The rotation amount can be set according to the selected wash material, as each direct drive can be  combined with a frequency converter (FC). Wash material with differing rotation speed can be retrofitted without having to reconstruct drives.

Your advantages:

• Up to 30% less electricity consumtion
• Rotation can be adjusted to suit wash material
• Precise applied pressure regulation
• Change of rotation direction without loss of time
• Problem-free wash material exchange without reconstruction

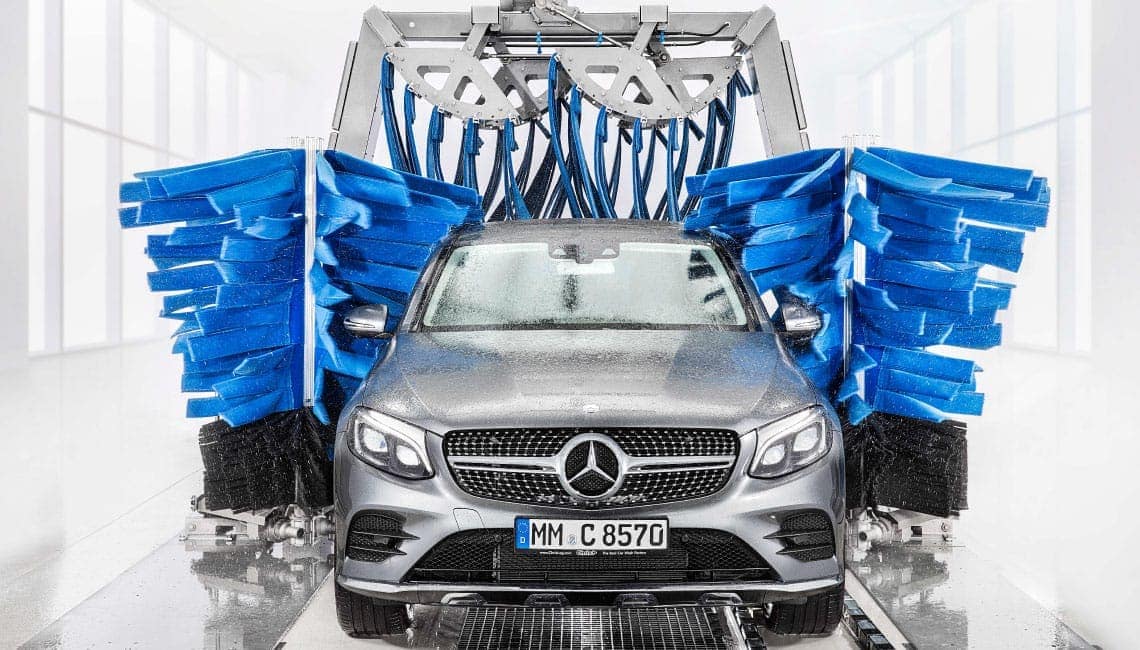

EVOLUTION Wash portal EVO-3

Wash portal Evolution EVO-3, 2 cylinders or 3 cylinders

Two profiled side cylinders perform a centre cross-over wash on the vehicle. Opening and closing of the side cylinders succeeds electromotorically via the X-Rail direct drive with frequency
converter (FC). The travelling tracks pneumatically pivot from the front wash position to the rear wash position during the side wash. The air cylinder brings them then back to their starting position following the vehicle wash. FOLLOW-UP Roof cylinder system: Also compatible with the EVO-3!

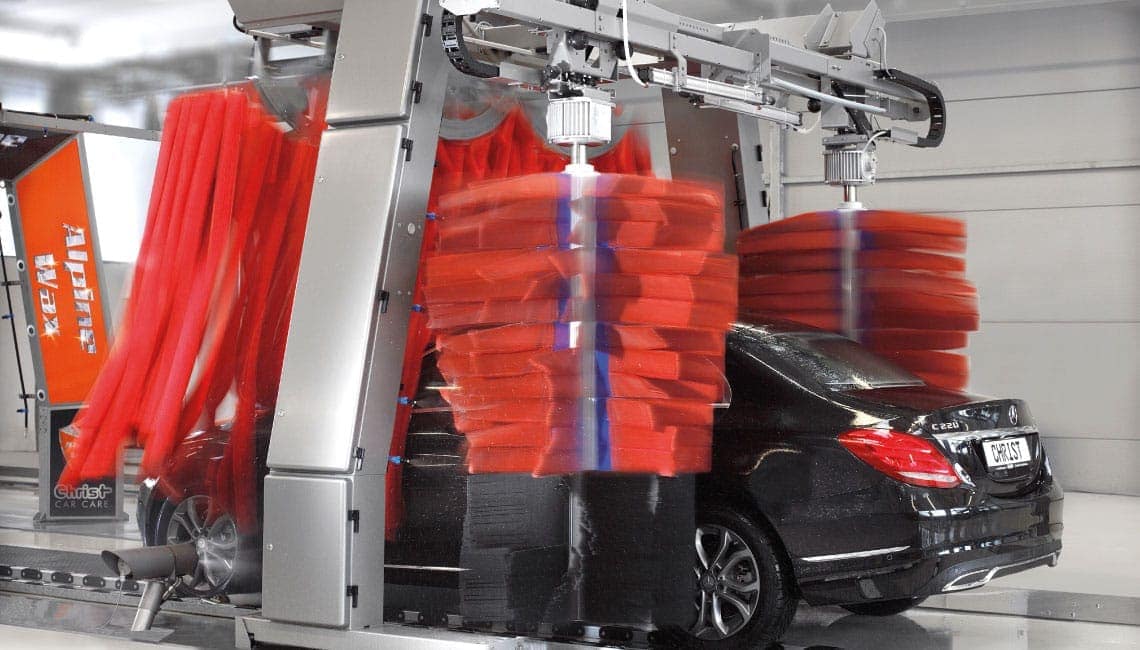

Roof cylinder system KINEMATIC

Roof cylinder system KINEMATIC, free-standing

„Kinematic“ is defined as being the science of the movement of bodies in a room. This also applies to our moving roof cylinder – it moves over the horizontal vehicle surfaces to be washed and even over the rear of the vehicle and washes with simplicity and perfection without requiring any lifting motor / cables or belts. A counterweight maintains the balance and a pneumatic cylinder is used for lifting the cylinder if required. The cylinder drive is serially controlled via a frequency converter (FC). The amount of rotations required can be set for the selected wash material via the FC.





EVOLUTION in wash tunnel technology

Vehicle front wash
The roof cylinder kinematicalley moves upwards by means of the vehicle’s forward pushing movement

Horizontal front surface wash
The roof cylinder holds the position by means of the counterweight setting

Horizontal surface wash
The roof cylinder moves upwards until reaching the maximum vehicle height

Vehicle rear wash
The roof cylinder lowers on the rear through the descending geometry of the vehicle’s rear

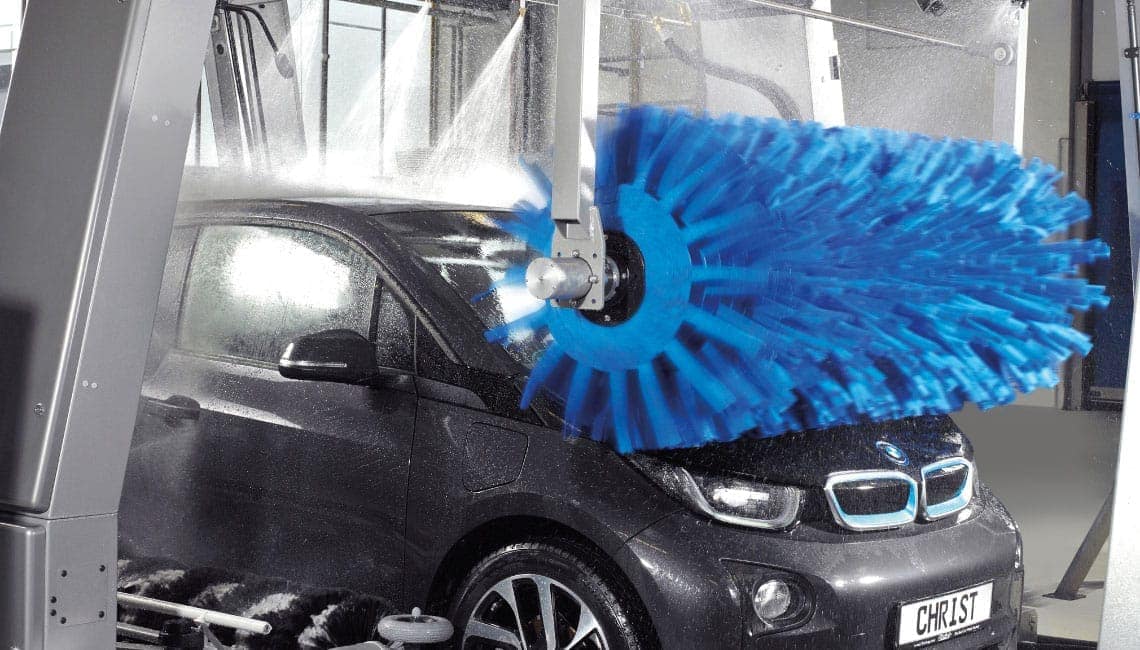

EVOLUTION All-around washer EVO-4

EVOLUTION All-around washer EVO-4

Wash portal Evolution EVO-4, 2 cylinders Completely automatic and pneumatic wash sequence. Precise and reliable „like a Swiss clock“. Two profiled side cylinders perform a centre crossover wash on the vehicle’s rear. The forward pushing movement of the vehicle opens the side cylinders on the vehicle’s front. The rear follow-up is completely automatic and is performed by the  adjustable slanted position of the X-Rail travelling tracks. The travelling tracks are pneumatically pivotted during the side wash from the front wash position to the rear wash position. The air cylinder then brings  them back to their starting position following the vehicle wash.

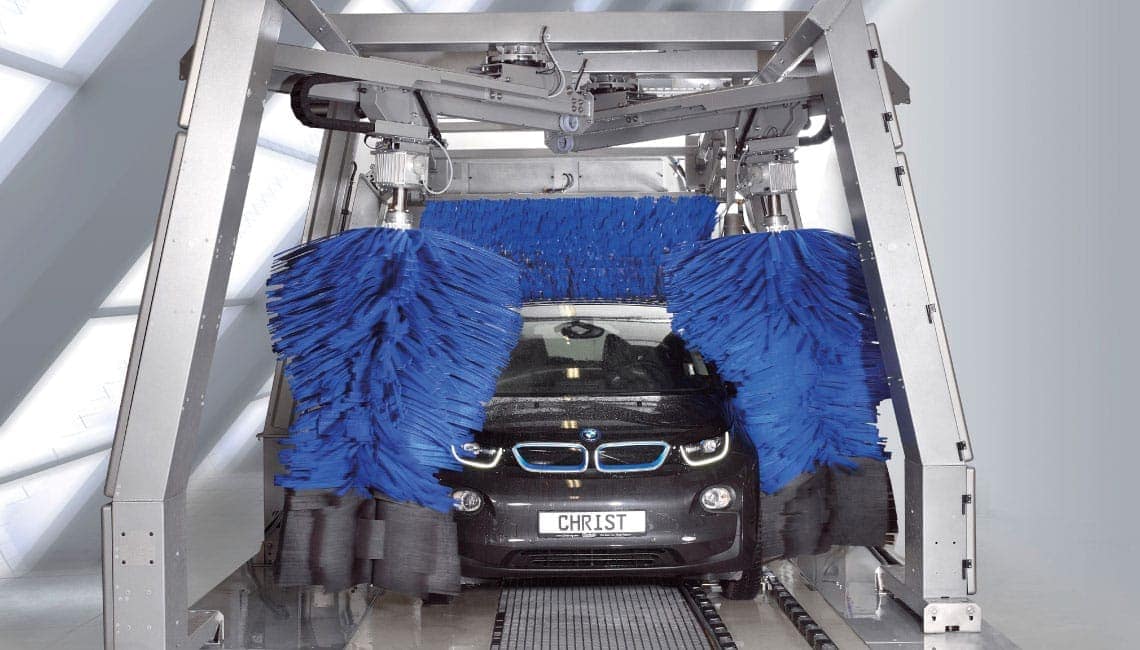

EVOLUTION Wash portal combination EVO-4S

Wash portal Evolution EVO-4S, 6 cylinders

Space-saving and effective combination portal with the following features:

1 pair of side cylinders EVO-4
1 pair of side cylinders EVO-1
2 FOLLOW-UP-roof cylinder

installation depth only approx. 9,500 mm





Wash portal Evolution EVO-4S, 5 cylinders and 1 roof cylinder

Space-saving and effective combination portal with the following features:

1 pair of side cylinders EVO-4
1 pair of side cylinders EVO-1
1 FOLLOW-UP-roof cylinder, front-mounted
1 roof cylinder transverse pivoting, back-mounted

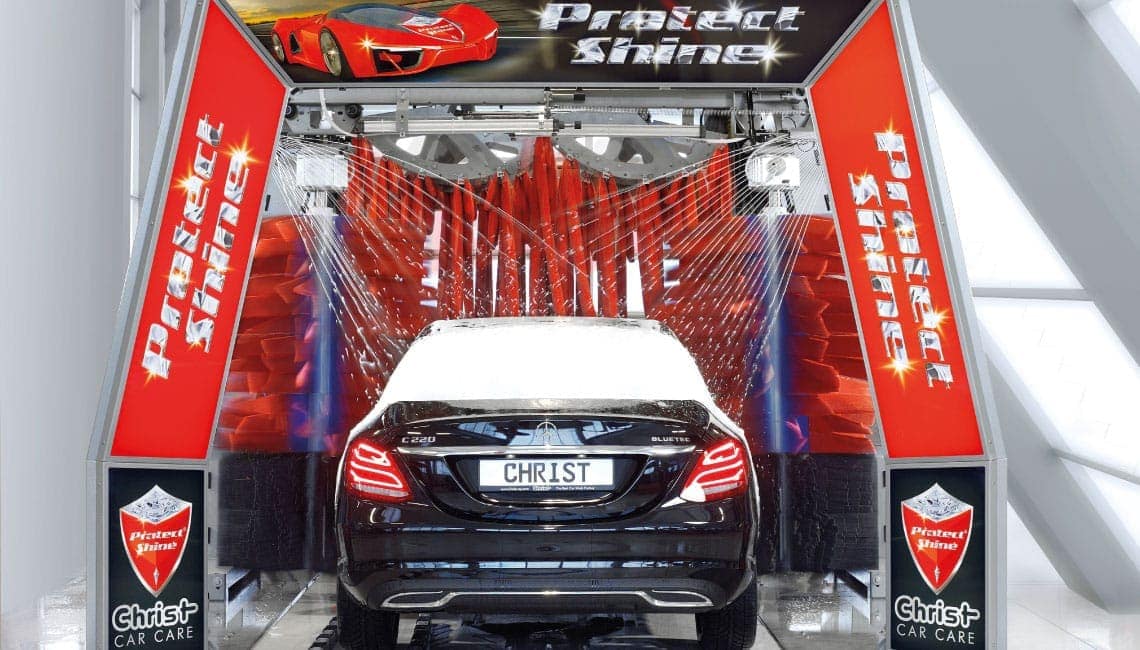

Polishing arch / Protect Shine

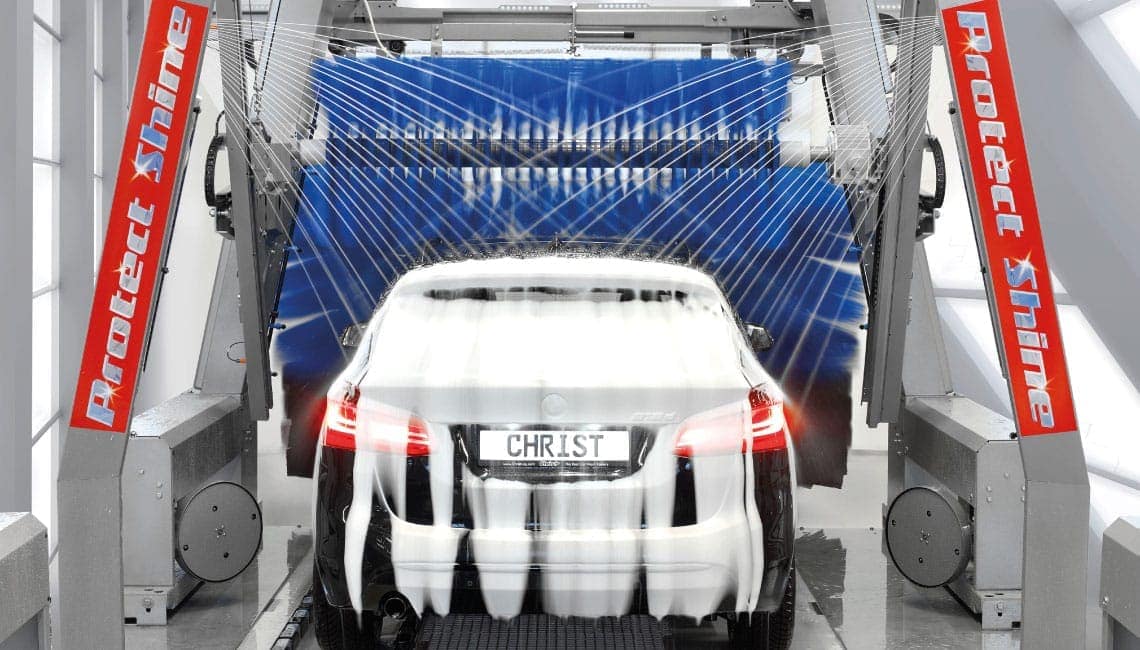

PROTECT SHINE Polishing spray device, Aluminum premium arch with LED-illumination

High-grade arch made from powder coated aluminum with LED background lighting for application of Protect Shine Nano Gloss Polish via two foam fan spray jets. Including full-surface adhesion in the Protect Shine design and 25 kg Protect Shine from Christ Car Care. The Protect Shine applied to the vehicle is rubbed in by the following textile wash dervices.

PROTECT SHINE Polishing spray device, DURAPROTECT arch nonilluminated.

Arch designed in powder coated stainless steel (DURAPROTECT) for applicaton of Protect Shine Nano Gloss Polish via two foam fan spray jets.Including adhesion in Protect Shine
Design and 25 kg Protect Shine from Christ Car Care. The Protect Shine applied to the vehicle is rubbed in by the following textile wash devices.





For maximum Power

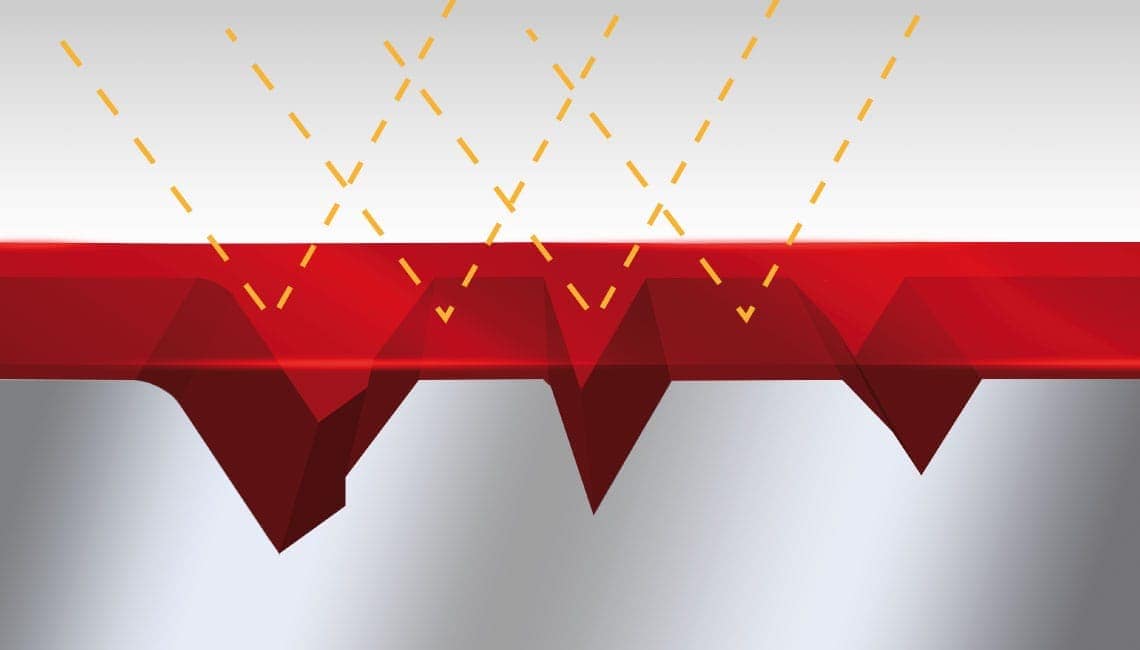

Outer influences seal off the vehicle paint surface. Gloss is reduced. Protect Shine is rubbed in and evens out irregularities.Regular application strengthens the protective layer. The vehicle paint surface becomes increasingly even and shines with a new premium gloss.

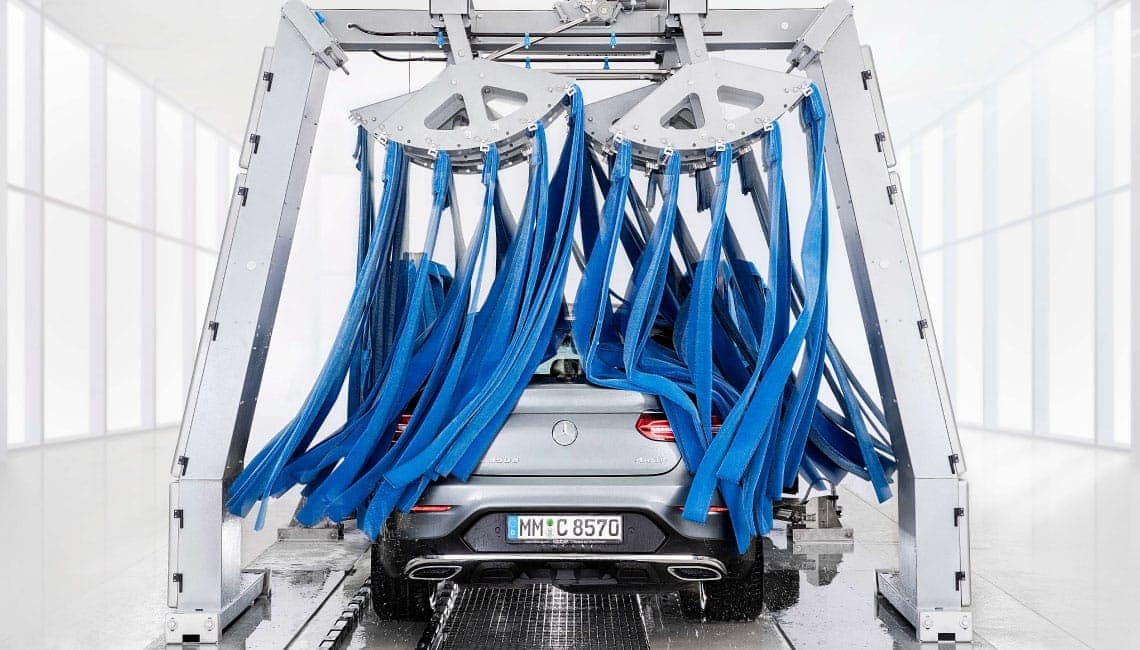

Washmitter free-standing

Washmitter cross-swinging, free-standing

Sturdy frame made from galvanized steel with duplex powder coating and plastic doors. The electrically driven crossmitter, with its 4 DURAPROTECT receiving rockers for wash textile (e.g. Teddytex microfasertextile), washes upper side and horizontal surfaces with the textile strips swinging sideways to the vehicle. A polishing spray device can be mounted on the front-side of the washmitter.
