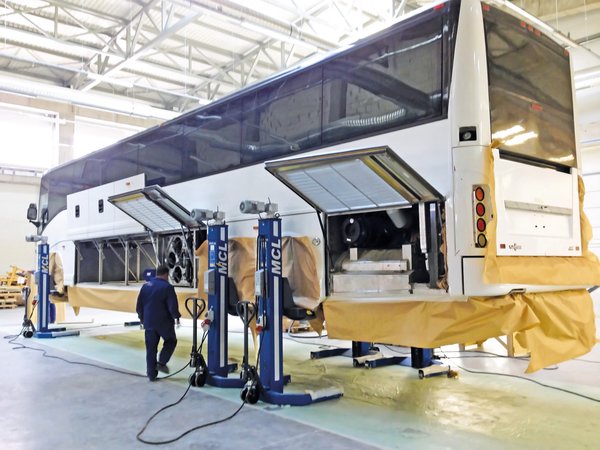

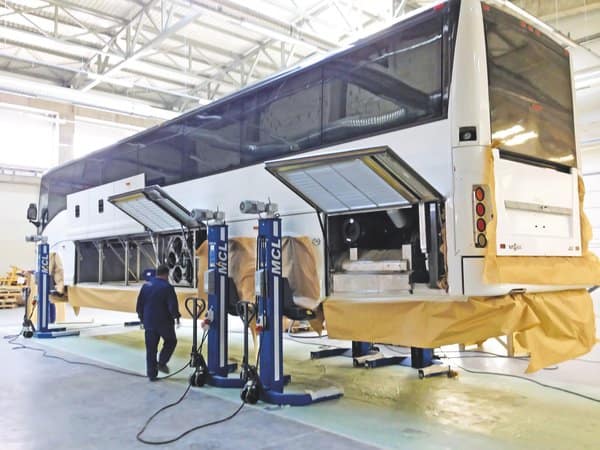

Maha – MCL 22 Mobile Column Lift with one post

COLUMNLIFT | Mobile Wheel Engaging Column Lifts up to 5500 kg load capacity per column


Description:

Very smooth running due to electro-mechanical drive system
Excellent lifting column mechanical rigidity guarantees safety and function under any conditions
Low-wear lock nut
Precision-height positioning without overrun thanks to high-quality worm gear motor
Lifting carriages with fixed holder
Overhead drive unit creates even more space in the work area
Workshop-robust and splash-proof control unit
Wear-free and easy-to-use membrane keypad
Flexible column positioning thanks to excess-length connection cables, guaranteeing suitability across all vehicle categories
User convenience with panel operator controls on each individual column
High level of flexibility in use due to different operating modes
Group and individual column operating modes enable quick and easy replacement of wheel and axle suspensions
Microprocessor control and wireless monitoring of movement synchronisation and all safety functions
Simple emergency lowering for power failure included as standard
System can easily be expanded with up to eight columns
Streamline COLUMNLIFT design aids manoeuvrability specifically in workstations with restricted space
High-quality powder coating available in a variety of colours


Standard Delivery:

4 individual mobile columns
1 mechanical dolly, repositionable
