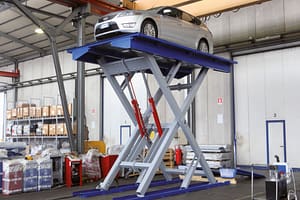

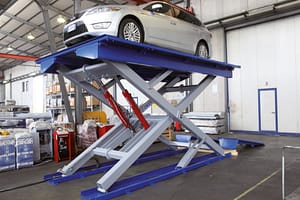

Rex GOLD range is a member of the car parking lift family. These lifting platforms use a pantograph lifting system (scissor). It is a very versatile car parking lift serving up to 4,10 mt. with a single scissor and its strength is based in its resistance, combined with a very attractive price. This kind of car parking lift has a capacity up to 4 tons and, some models, having two moving legs, are able to lift up the platform in a symmetrical way. This characteristic allows it to also be used as a goods lift, without the need to distribute the weight on the whole platform. A Roof version is also available.

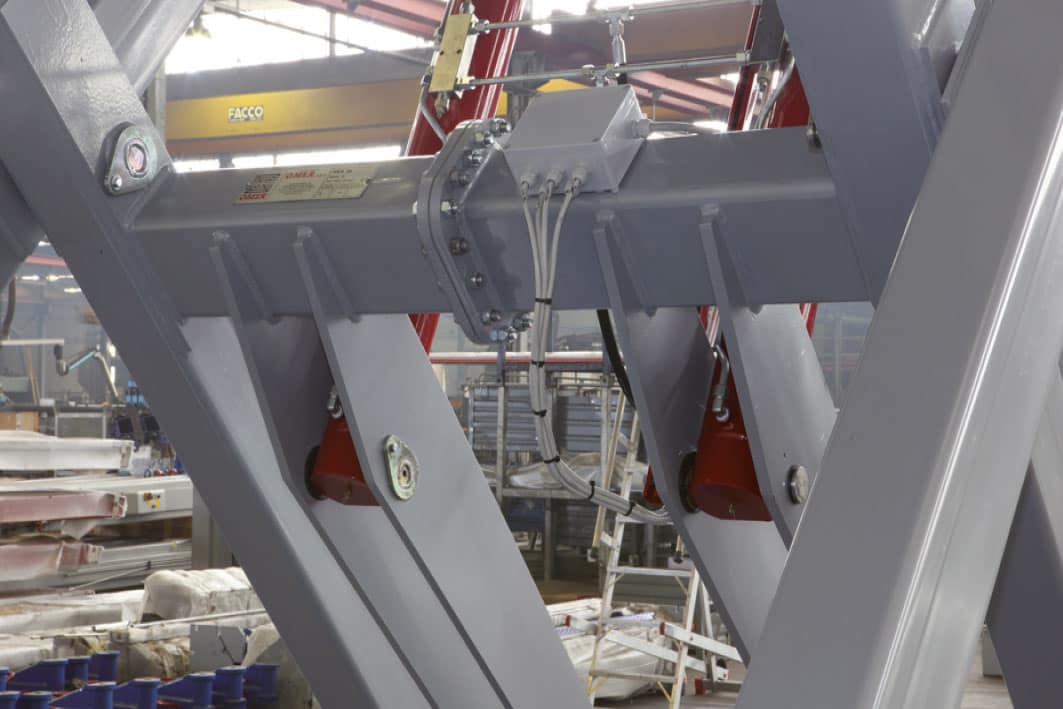

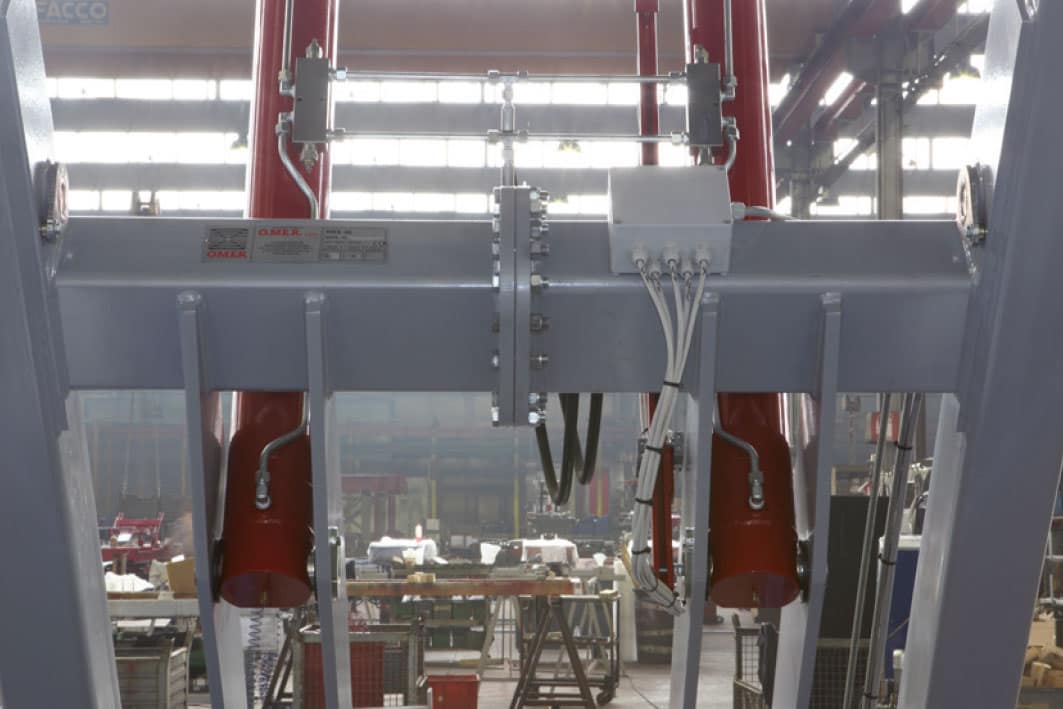

Photo of the flange on the central beam, with the electrical system junction box on the side.

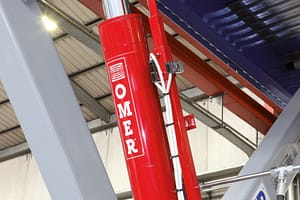

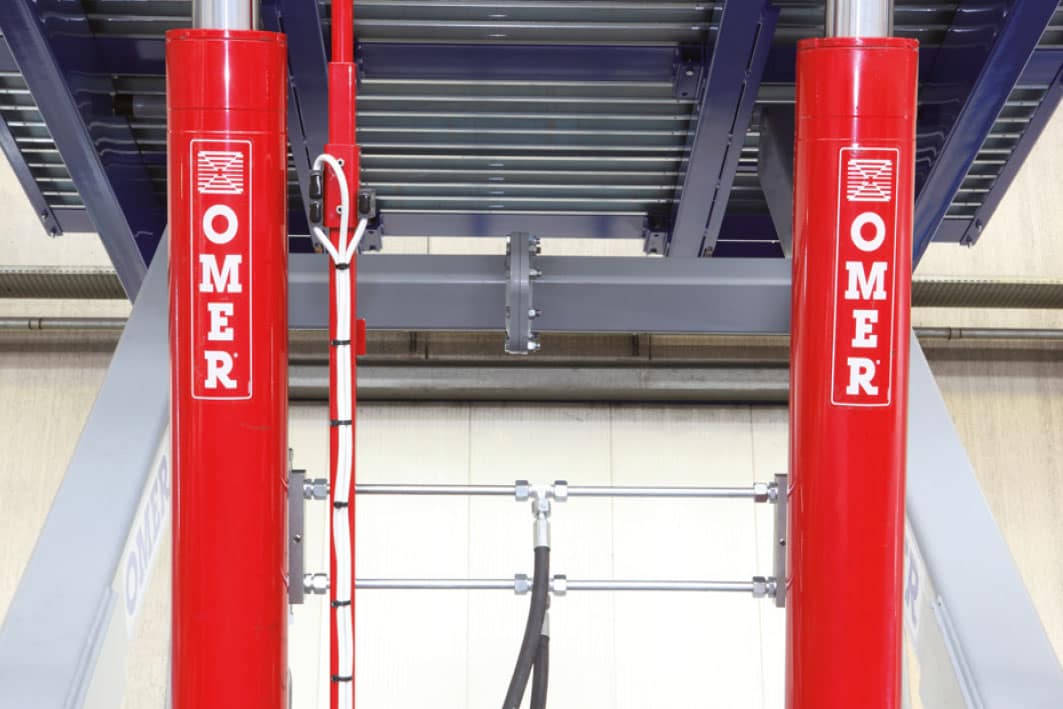

The two lifting pistons
are set at the centre of the unit, installed on the mobile structure of the legs, thus minimizing any type of encumbrance.
The pistons are manufactured by Omer SPA.

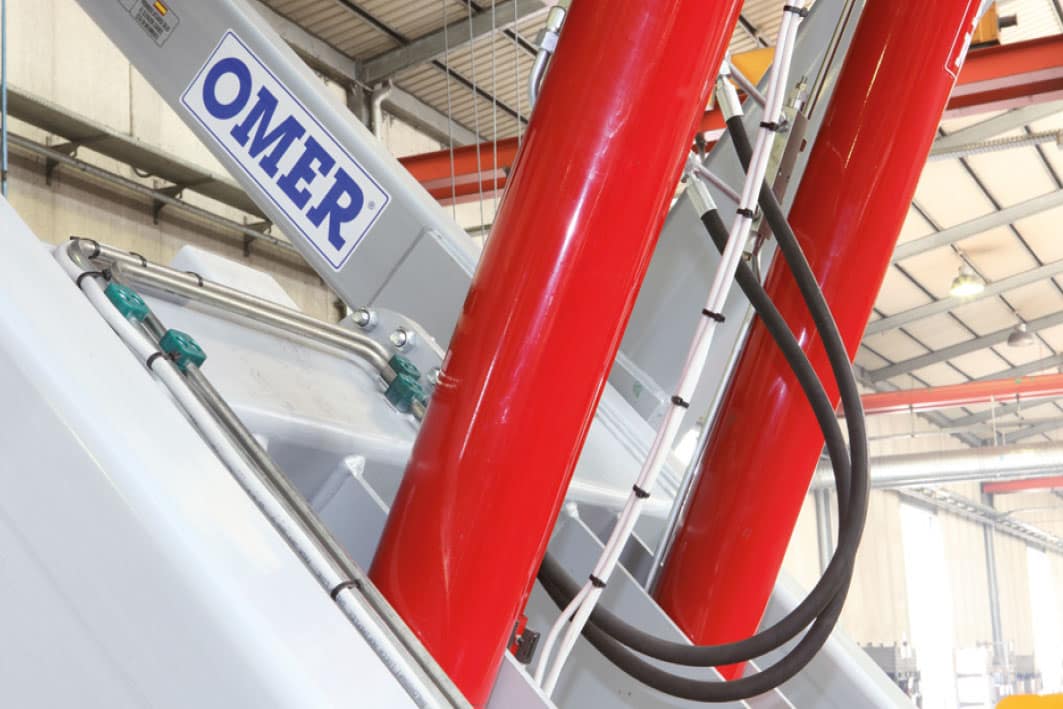

The two cylinders
At the center, the two cylinders are attached by a fixed connection and from there run to the hydraulic system. A bar has been installed on the left piston to hold the three types of limit switches, adjustable according to the desired height.
Two limit switches for the top level, two for the lower level and one safety.

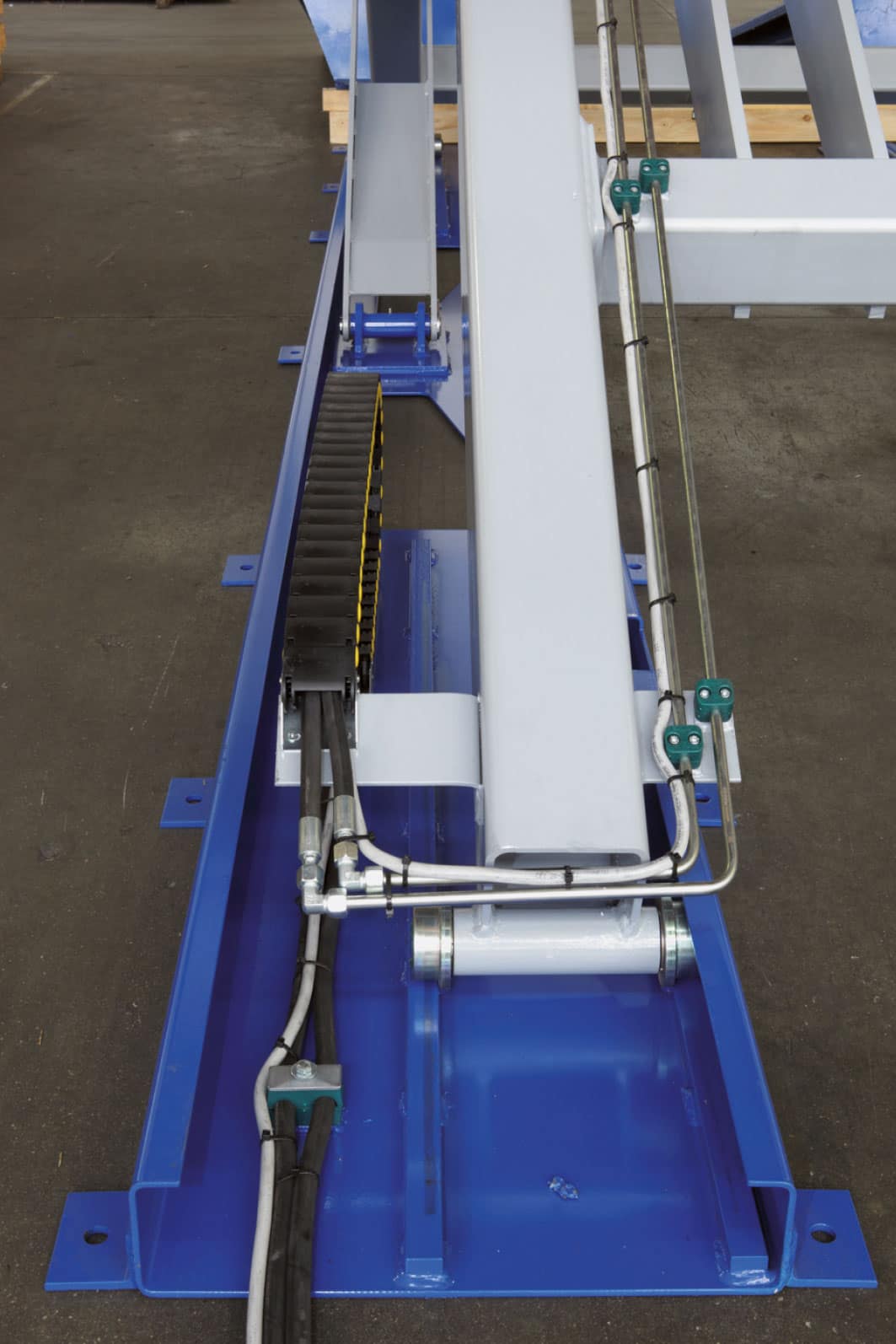

All connection systems
– both hydraulic and electrical – are installed along the legs of the machine, thus they do not take up any extra space and are easy to maintain.
All systems are preinstalled on the unit.
The photo shows the shaft supporting the limit switches.
Moreover, all connections
have a catenary protection that keeps them in their housing, protecting them from forced or abrupt bending and thus preventing breakage. As can be seen, the legs slide on two continuous grooves fixed to the ground with mechanical anchors. The two bases are also suitably shaped to prevent the leg slide wheels from popping out in case of uneven operation.
Photo of the hydraulic pistons, central connections and adjustable limit switches.
Both hydraulic pistons have valves so that the pressure differential can be read. Any sudden leak of oil from the circuit, resulting in an abrupt drop in pressure, activates the parachute valves, immediately closing the hydraulic connection to the piston itself, promptly locking the platform.
If the installation

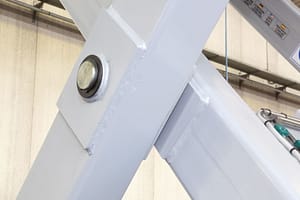

site presents problems, REX Gold 30 can have flanged connection beams (flanging on the upper beam) so that the unit can be set in the lift shaft unassembled. The central leg securing pin is inserted into a reinforcement on the legs themselves, thus ensuring greater resistance to wear.
The photo shows the auxiliary lever connected to the back leg; it centers all the legs vs. the central axis of the unit and thus provides additional safety, preventing the structure from disengaging or improper lateral movement.

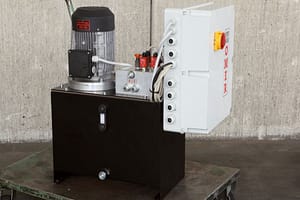

In order to ensure that the whole assembly is extremely compact, the hydraulic unit – Electro-hydraulic pump and oil tank – is built as one with the electric control panel.
The great accessibility

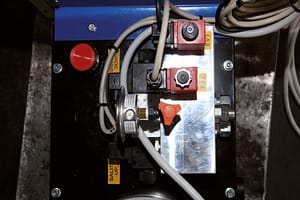

of the hydraulic block, the speed control valves and the manometer controlling operating pressure make this maintenance and intervention on the machine even simpler and safer.

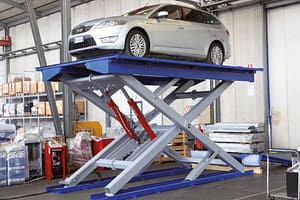

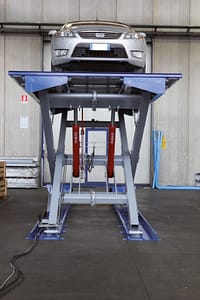

The rex 30 gold
maximum height above ground is 4.10 mt and its standard load bearing capacity is 3,000 Kg (which can be increased to up to 4,000 Kg). Thanks to the lift symmetry, the weight does not need to be centered on the platform itself, thus it can double as either goods lift or car lift.
Despite its sturdiness, the REX Gold 30 (which weighs a total of 4,000 Kg) is extremely compact, requiring a pit of just 51 cm.
Moreover, to ensure greater resistance to the weather and outside factors, the platform is fully galvanized.

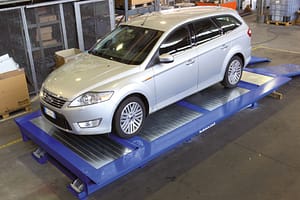

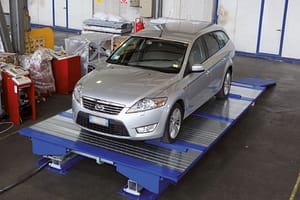

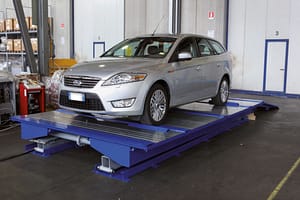

Note the platform stop (standard) which ensures correct positioning of the vehicle from the front edge.
This detail ensures utmost safety, preventing any abrupt forward movement of the vehicle while the platform is being moved. Another such stop is found at the back.

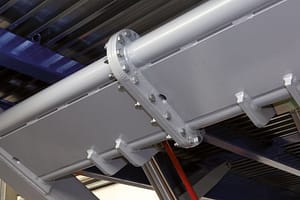

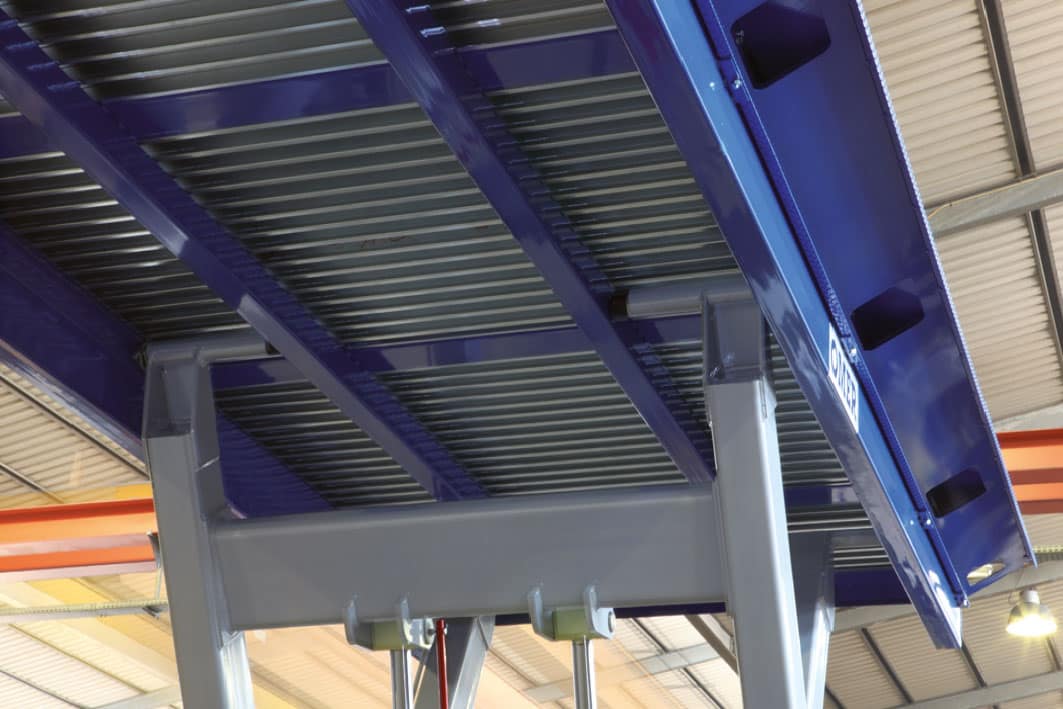

The underlying part of the platform
is supported by a steel skeleton that ensures the utmost reliability.
is composed of a series of galvanized panels which are both extremely sturdy – given the shape of the panels – and light.
Detail of how compact the unit is.
The rex 30 gold platform
is the top of the line of all pantographic platforms (also called scissor lifts).
REX Gold 30 has four mobile points at the ends of the two double legs, thus ensuring perfect symmetry and preventing the need for any overhanging platform parts.
it has two outside valves installed on the so-called double effect hydraulic pistons. To lower the platform, pressurized oil must be fed into the pistons through the safety valves, thus controlling the rate at which it is lowered.
Besides the standard

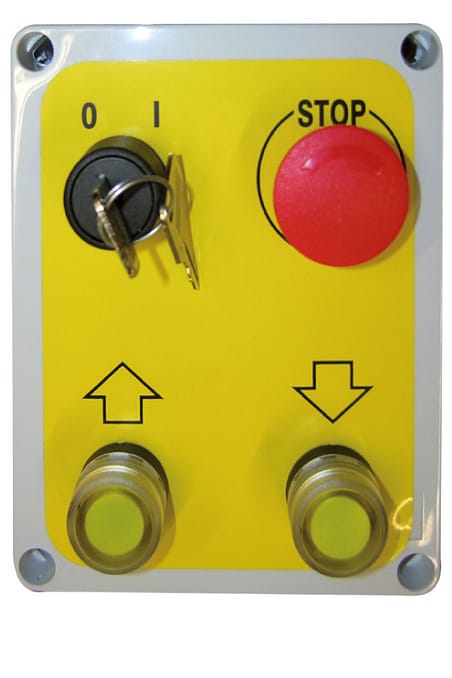

buttons to operate movement, the pushbutton panel has a “mushroom-shaped” emergency stop button and an activation key.
